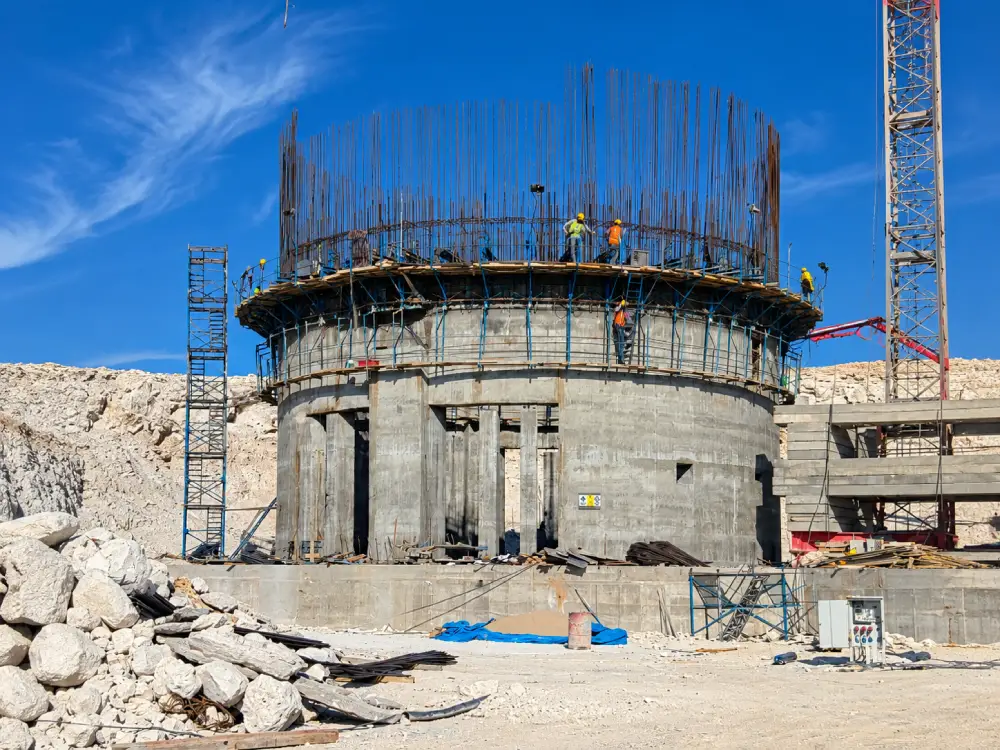

Climbing Formwork
System

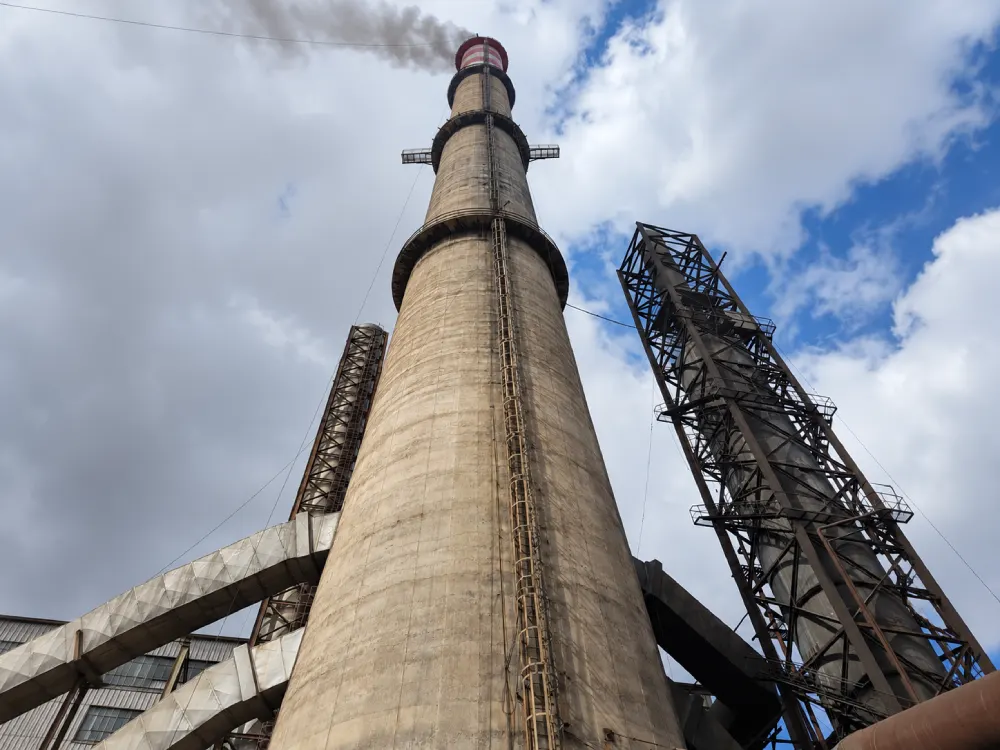

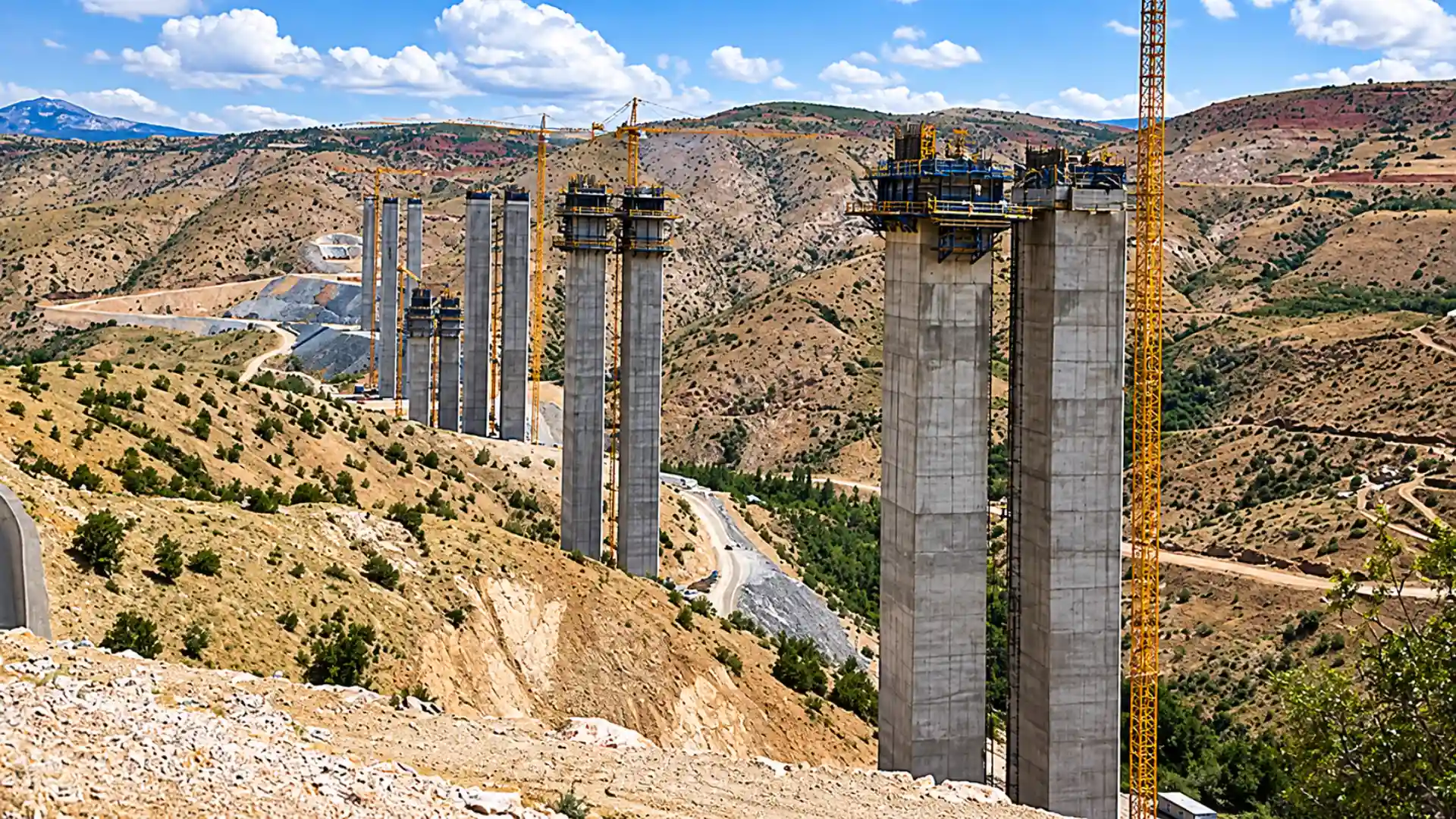

A climbing formwork system is a controlled formwork method that advances tall reinforced-concrete structures upwards in defined concrete lifts. Depending on project requirements, it can be applied to bridge piers, viaduct supports, tall wall structures, industrial towers and reinforced-concrete elements of many different geometries. Once the structure has been completed up to the defined pour height, the formwork is moved to the next level, and the same work cycle is repeated up to the top of the structure.

Although climbing formwork and slipform are often confused, they work on different principles. With slipform, concreting and the rise of the formwork are carried out as a more continuous production operation, whereas climbing formwork advances through defined concrete pour stages. The choice of method should therefore be based on an assessment of the structure's geometry, height, concreting programme, expected surface finish, access conditions and the project's technical details.

Planning the Formwork System Around the Project

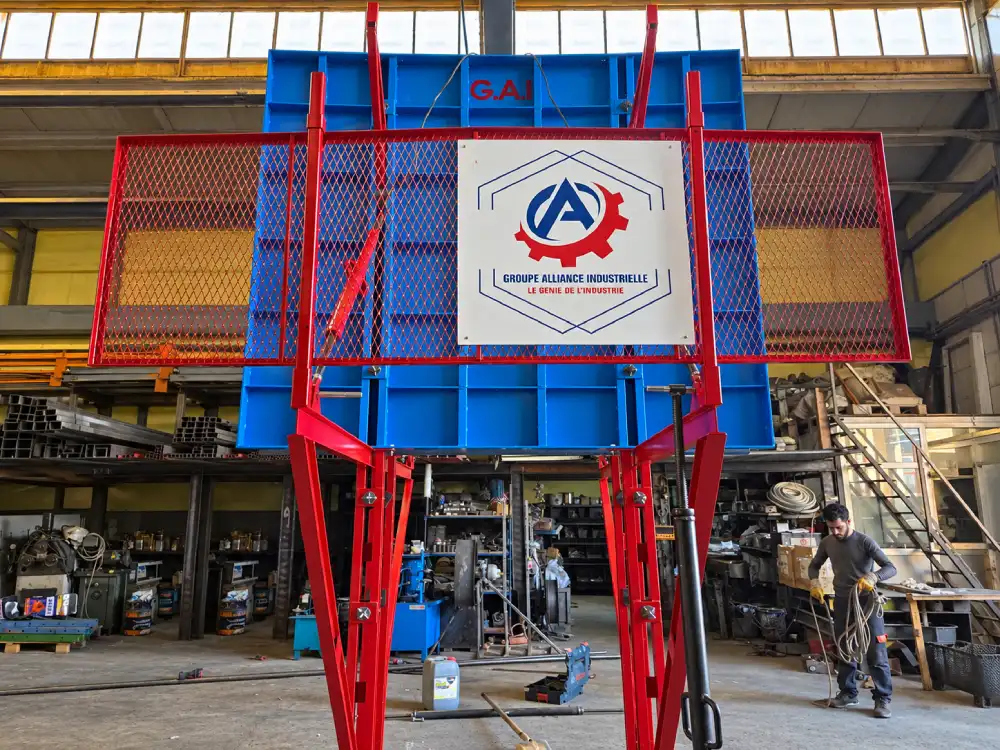

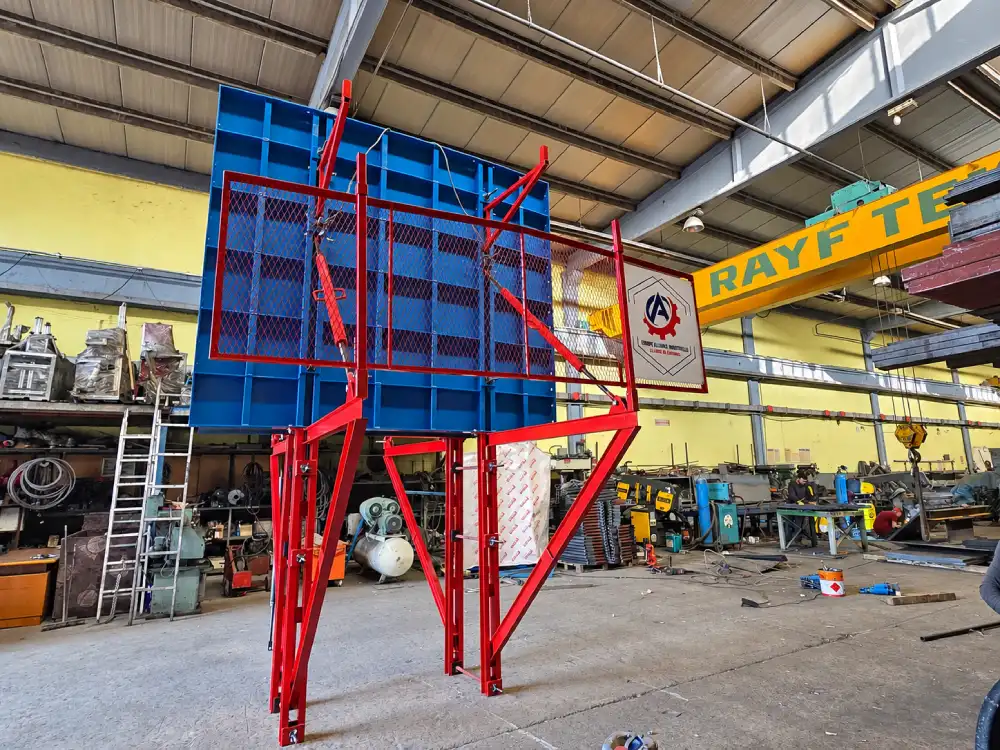

Rayf Teknik treats climbing formwork not as an off-the-shelf product but as engineered equipment that must be planned around the project's reinforced-concrete geometry. Panel dimensions, working platforms, anchor points, the lifting system and personnel access are all assessed before work begins. If the geometry of the structure changes with height, the formwork system must be able to adapt to that change.

Because the working level on high-rise projects is constantly changing, occupational health and safety takes on particular importance. Working platforms, guardrails, access points and formwork connections must all be advanced in a controlled way. At higher elevations especially, wind effects, material handling and the organisation of working areas should be treated as an integral part of the project programme.

On some projects climbing formwork is used on its own, while on others a hybrid approach can be planned, combining it with a slipform system in different parts of the structure. For example, slipform may be the better option for tall reinforced-concrete sections whose cross-section stays constant over a long height, while climbing formwork may be preferred for sections with geometric transitions or special concrete pour stages. In this way, the project is not tied to a single formwork method, and each section can be built with the most suitable technique.

Monitoring concrete strength is also important with climbing formwork. Before the formwork can be raised to the next level, the previous pour must have gained enough strength to carry the loads imposed by the system safely. For this reason, the concreting programme and formwork movements are planned in close coordination.

Drawing on its experience in industrial and tall reinforced-concrete structures, Rayf Teknik can evaluate and apply climbing formwork and slipform systems to suit project conditions. The aim is not simply to raise the structure, but to deliver a reinforced-concrete structure that meets the project's technical requirements by keeping dimensions, verticality, work safety and construction quality under control at every pour stage.
