Column Formwork

Column
Formwork

OUR PROCESS

Column formwork process

01

Cross-Section Survey

Diameter, height, number of reuses and site access are confirmed during the column formwork site survey.

02

Quotation

The number of shells, the stiffeners and the joint details are set out in the quotation.

03

Design Calculations

Fresh concrete pressure, plate thickness and the bolt pattern are assessed.

04

Fabrication

Half-shells are manufactured in the workshop, painted and prepared for dispatch.

05

Erection

The shells are joined at the flanges on site, and the axis and verticality are set.

06

Pouring & Striking

Once the concrete has gained strength, the formwork is opened and moved to the next column or level.

07

Handover

Diameter, joint details and operating notes are handed over to the client.

EXECUTION

Our site approach to
column formwork

01Construction Formwork
Column Formwork — Analysis

Analysis

On a circular column, two half-shells form a complete circle. Diameter and pour height are taken from the design cross-section, not from a fixed catalogue size.

02Construction Formwork
Column Formwork — Engineering

Engineering

Stiffener spacing, flanges and bolts are designed for the fresh concrete pressure. If a joint slips, the column loses its roundness.

03Construction Formwork
Column Formwork — Column formwork in practice

Column formwork in practice

Erection, pouring and striking run as a single cycle. Site supervision can be provided for the first pour.

ABOUT THE SERVICE

Steel column formwork built
to project requirements

Column formwork is a steel formwork system that maintains the design cross-section and verticality of a reinforced-concrete column throughout the pour. For circular columns, the formwork consists of half-shells bolted together. Stiffeners on the outside of the shell carry the fresh concrete pressure, while the connecting flanges ensure that the two halves close on the same axis. Square, rectangular and special geometries follow the same logic, using made-to-measure panels and corner details.

The formwork is manufactured in the workshop, erected on site and struck once the concrete has reached the required strength. Because the same formwork can be re-erected at the next level or on the next column, the erect-and-strike sequence is planned from the outset on tall and repetitive column work. The aim is not just to shape the concrete, but to keep the surface finish, diameter and verticality consistent from one pour to the next.

Half-Shells for Circular Column Formwork

In circular column formwork, two half-shells join to form a complete circle. The diameter, pour height and concrete pressure determine the shell plate, the stiffener spacing and the bolt pattern. If the flanges do not close fully, the column loses its roundness and the joint leaves a mark on the surface. For this reason, the joints, clamps and supporting members are detailed before fabrication, and the tightening sequence on site follows these drawings.

On tall columns, the formwork may not cover the full height in a single piece. With staged pours, the lower shell is struck, raised to the next level and the work continues with the same system. This cycle is arranged so that it does not clash with climbing formwork or a conventional scaffolding arrangement. Reinforcement, embedded plates and starter bars must be in place before the pour; opening the shell to add a missing anchor after the formwork has been closed costs both time and geometric accuracy.

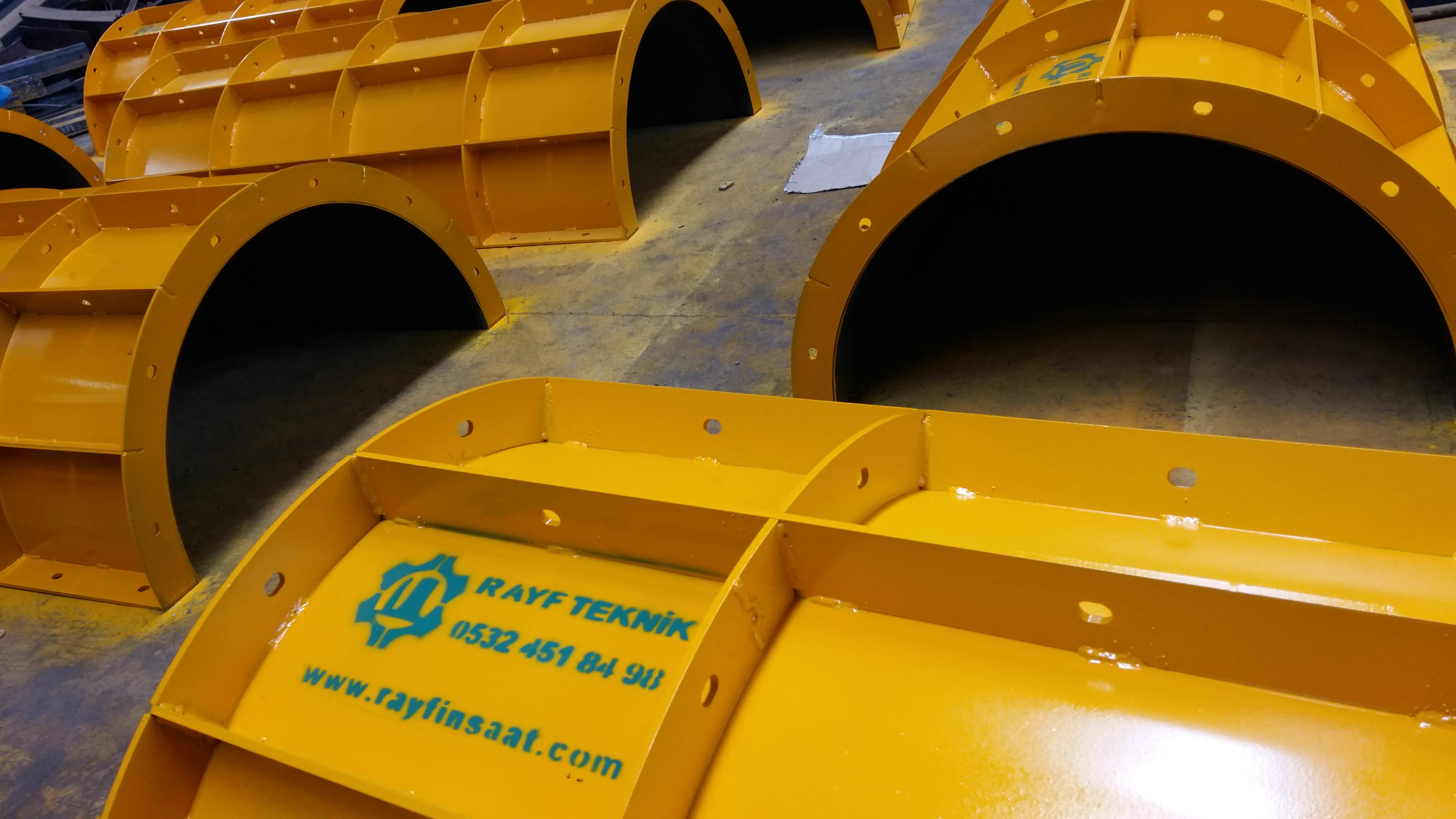

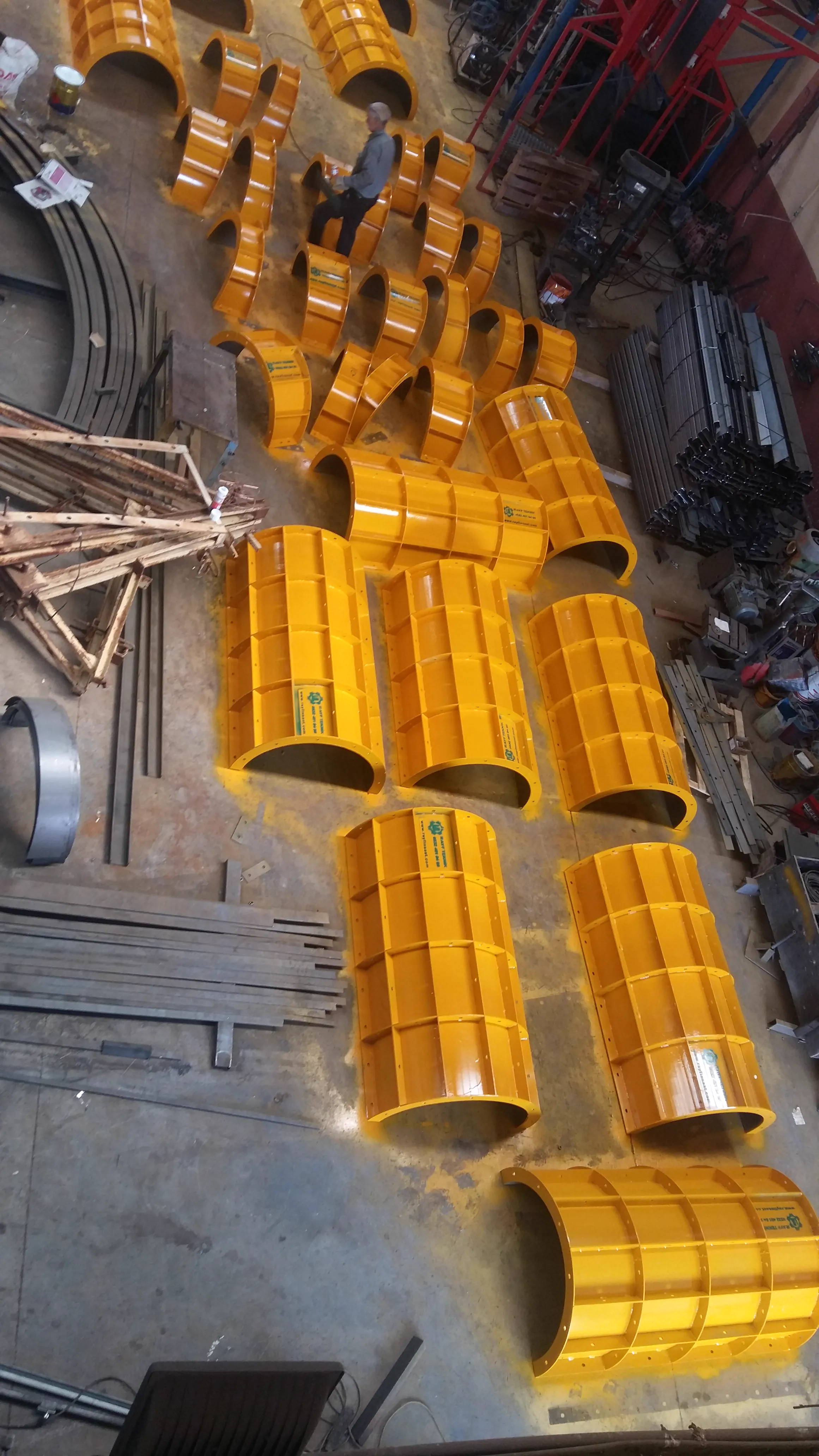

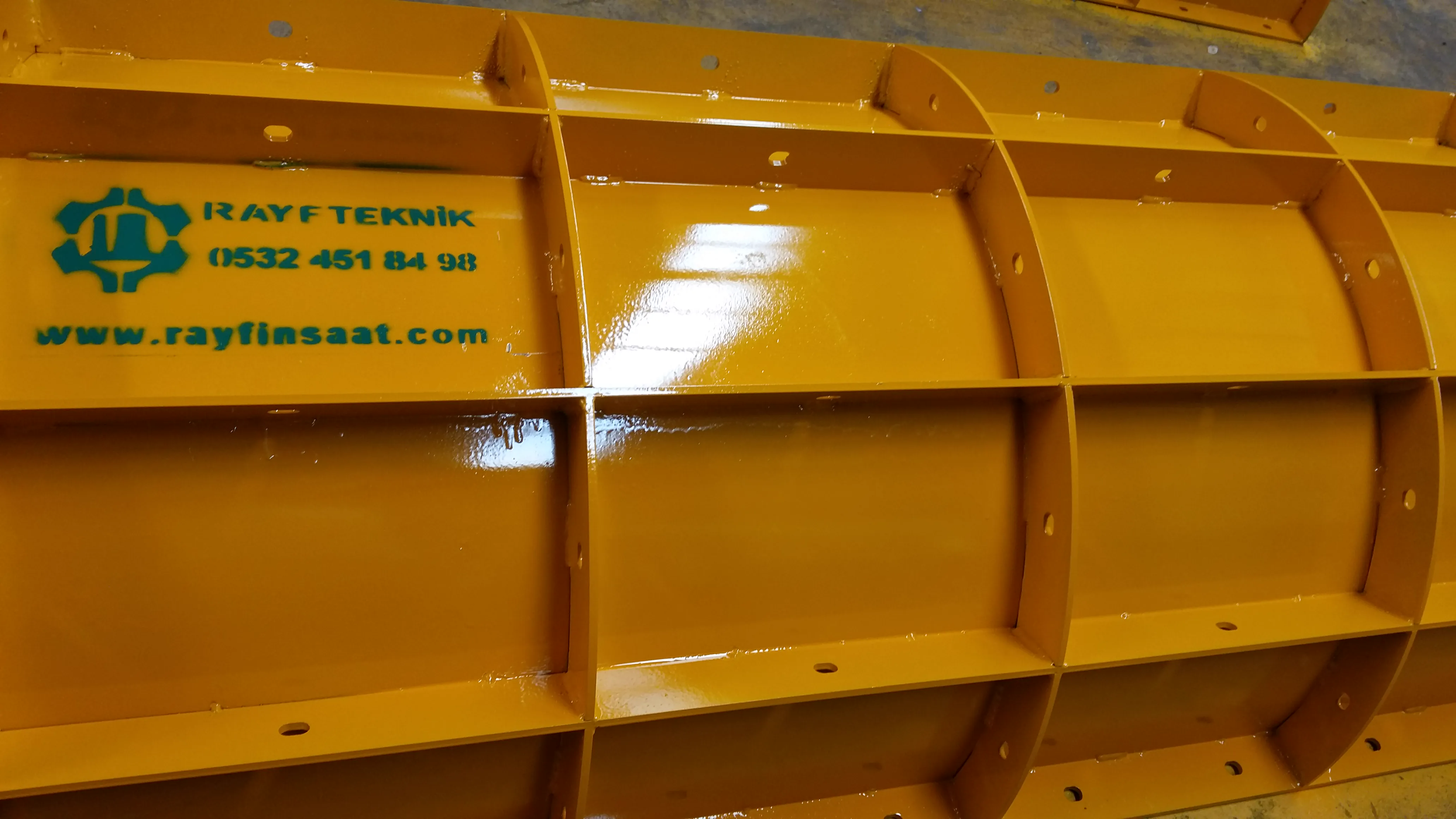

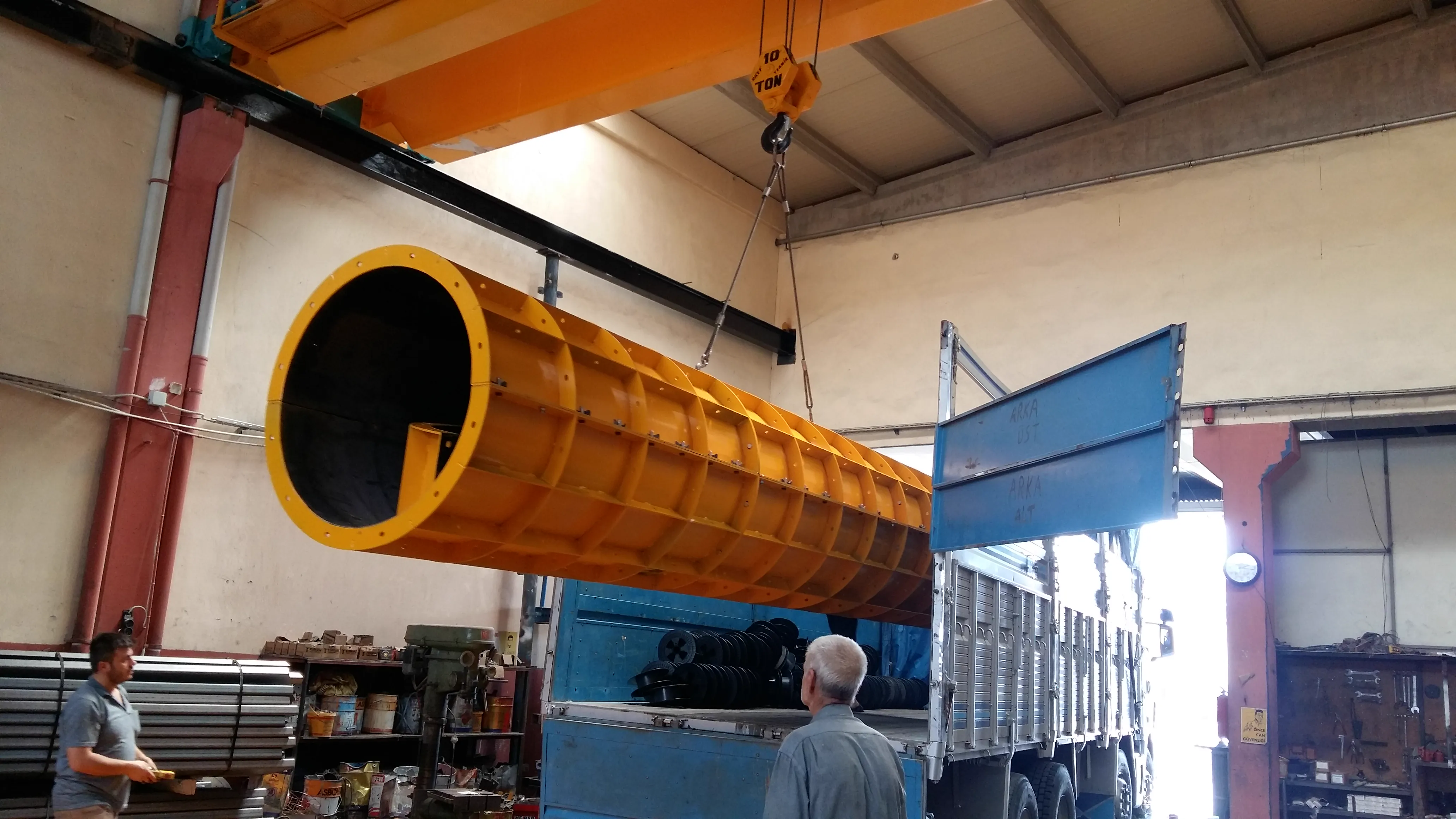

Rayf Teknik treats column formwork not as a fixed catalogue size, but as a fabrication developed around the diameter and height of each project. The Taksim column formwork images show this production in the workshop and ready for dispatch: painted steel shells, stiffeners and flanged joints. The same formwork can be reused on the next job if the diameter matches; if the diameter changes, the shell is renewed, while the supporting structure and suitable connection components can be retained.

During erection, the axis and verticality are set before the first pour. As the concrete is placed, vibration must not shift the shell, and the concrete consistency must not generate more pressure than the stiffener design allows for. The formwork is never struck before the concrete has gained enough strength to hold its own shape. Striking too early distorts the circle; striking too late lets the formwork bond to the concrete and damages the surface.

Whether the formwork is purchased or deployed on a site contract, site supervision can be provided for the initial erection and the first pour. At handover, the diameter, joint details and operating notes are documented. In this way, column formwork is not a one-off sheet-metal job but a production tool that is re-erected time after time, with a dimensional record kept throughout.

TECHNICAL SPECIFICATIONS

Column formwork: technical overview

Column formwork is manufactured to suit the diameter, pour height and concrete pressure. The rows below show a typical application framework.

Specification Value
01 System Steel column formwork
02 Cross-section Circular and project-specific geometries
03 Joint Flanged half-shells
04 Pressure Resisted by stiffeners and bolts
05 Use Can be re-erected repeatedly
06 Support Fabrication, shipping and site supervision
Column Formwork

TECHNICAL ADVANTAGES

Why steel column formwork?

Column formwork brings roundness, pressure resistance and repeat erection together in one solution. The advantages are set out point by point.

RAYF

01

Continuous Concrete Placement

Continuous slipforming prevents cold joints and creates a monolithic, rigid structure.

Large-scale industrial facility working at night

TECHNICAL SUPPORT

Get support for your
column formwork project.

Our technical team will contact you to arrange a site survey and quotation for your column formwork.

Information & FAQ

Column formwork FAQs

Short answers on the scope, timescales and handover of column formwork.

What services does Rayf Teknik provide?

Rayf Teknik provides engineering, manufacturing and on-site installation services for slipform systems, reinforced concrete silos, industrial chimneys, structural steel and custom formwork systems.

Our work includes raw meal, cement, clinker, grain and lime silos; bridge and viaduct piers; wastewater treatment structures; minarets and domes; overhead and gantry cranes; and project-specific industrial applications.

We select the system, equipment and execution method according to each project's geometry, programme and site conditions. You can review completed work on our Projects page.

What is a slipform system and how does it work?

Slipform is a continuously moving formwork method used for tall reinforced-concrete structures such as silos, industrial chimneys, towers, and bridge or viaduct piers.

Hydraulic lifting equipment raises the formwork at a controlled rate while reinforcement work and concrete placement continue according to the construction programme. Continuous placement significantly reduces the risk of cold joints and creates a monolithic concrete structure.

Slipform is not limited to circular structures. Project-specific engineering allows it to be used for square, rectangular, polygonal, prismatic and other custom geometries.

What is the difference between slipform and climbing formwork?

Both systems are used for tall reinforced-concrete structures, but they progress differently.

Slipform rises continuously using hydraulic equipment, allowing concrete placement to proceed without interruption. This provides a major programme advantage for silos, chimneys, towers and similar structures.

Climbing formwork advances in stages. After each concrete lift reaches the required strength, the formwork is moved to the next level and reinstalled. The correct method depends on the structure's geometry, concrete design, programme and site requirements.

What are the advantages of a slipform system?

Slipform enables tall reinforced-concrete structures to be built quickly and under controlled conditions. Because the formwork rises without being dismantled and rebuilt at every level, it can provide a significant time advantage on large industrial projects.

Continuous concrete placement reduces cold-joint risk and helps create a monolithic structure. Other advantages include high production rates, less repetitive formwork labour, adaptability to different geometries and efficient work at height.

Where technically suitable, equipment can be modified for later projects. We can also provide supervision for clients who purchase a system and carry out the site application with their own team.

Where are slipform systems used?

Slipform can be used wherever height, repetitive geometry and continuous concrete walls are central to the design. Typical applications include:

  • Cement and clinker silos
  • Raw meal and raw-material silos
  • Grain, feed, lime and aggregate silos
  • Industrial chimneys
  • Bridge and viaduct piers
  • Control and communication towers
  • Wastewater treatment and digester structures
  • Dams, water-intake structures, mines and energy facilities

Systems can be engineered for cylindrical, square, rectangular, polygonal and other project-specific geometries.
