Reinforced-Concrete Chimneys for Industrial Plants

Reinforced-Concrete Chimneys
for Industrial Plants

WORK PROCESS

The industrial chimney construction process

01

Chimney Survey

Internal diameter, height, temperature, corrosion and CEMS access levels are marked during the chimney site survey.

02

Quotation & Scope

The concrete chimney shell, platforms, ladders and maintenance works are quoted as a single package.

03

Structural Analysis

Wind, thermal expansion and reinforcement sections are calculated specifically for the chimney.

04

Detailed Engineering

Lining, openings and platform connections are finalised in the chimney drawings.

05

OHS & Access

Installation windows and lifelines are planned around the operating plant.

06

Chimney Construction

The shell rises by slipform, while CEMS and steelwork proceed on the same site.

07

Handover

The survey report, maintenance levels and platform access are handed over to the operator.

EXECUTION

Site discipline in
industrial chimney construction

01Industrial Services
Reinforced-Concrete Chimneys for Industrial Plants — Analysis

Analysis

The emission line, CEMS points and chimney cross-section are defined around the operating plant. Levels are marked during the site survey.

02Industrial Services
Reinforced-Concrete Chimneys for Industrial Plants — Engineering

Engineering

The concrete chimney, steel ladder and platforms are resolved in a single structural model. Heat and wind are assessed together.

03Industrial Services
Reinforced-Concrete Chimneys for Industrial Plants — Chimney construction

Chimney construction

Levels, verticality and OHS are checked at every stage. At handover, maintenance access routes are recorded in the report.

ABOUT THE SERVICE

Industrial chimneys built for
safe emissions and long service life

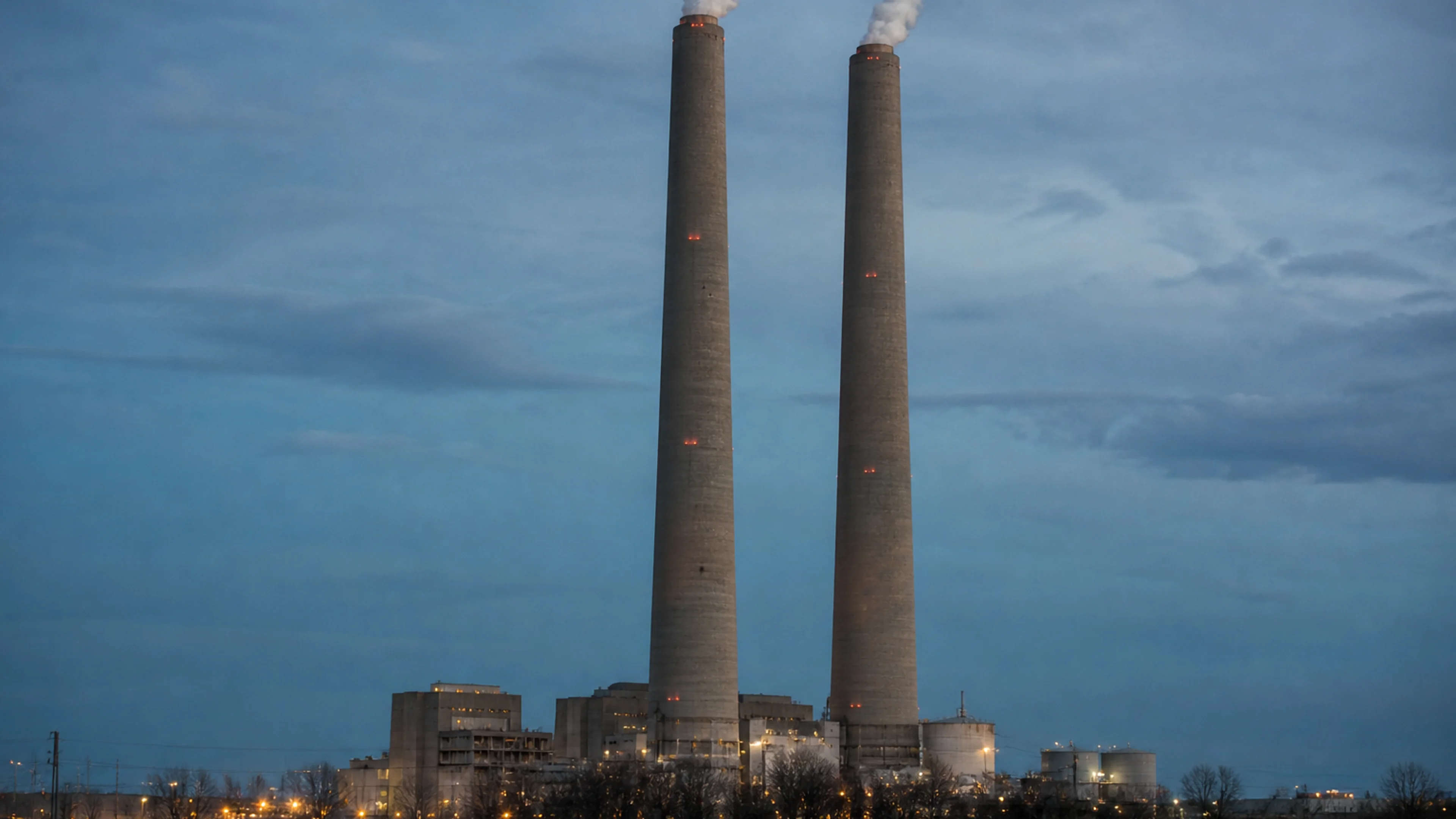

Industrial chimneys are highly engineered tall structures that discharge the gases generated by processes at cement plants, power plants, metallurgical facilities and other industrial operations to the atmosphere via designated exhaust systems. Chimney design is about far more than height: wind effects, seismic loads, temperature variations, gas properties, the internal lining system and maintenance requirements are all evaluated together.

One of the defining characteristics of reinforced-concrete industrial chimneys is their ratio of height to diameter or cross-section. Because most of the structure continues vertically without interruption, the construction method chosen for the reinforced-concrete shell has a direct impact on the project programme.

Chimney Shell

Slipform technology is one of the most widely used methods for building tall reinforced-concrete industrial chimneys. The system lifts the formwork hydraulically as the reinforced-concrete chimney shell rises. Reinforcement fixing, concrete pouring and form lifting are carried out in a single, sequential production cycle.

On conical shells, or shells whose diameter changes with height, the formwork geometry may also need to be adjusted in a controlled manner as the structure rises. In slipform practice abroad, conical chimneys, towers and tall structures with variable cross-sections are cited among the specialist applications of this technology.

In Rayf Teknik's slipform approach, changes in the chimney's cross-section, wall thicknesses and openings are built into the work programme before execution begins. As the form climbs, platform connections inside or outside the chimney, ladder anchorages, monitoring system connections and other embedded items must be set at the correct levels.

Surveying, Concrete and Site Coordination

Verticality control is critical on a tall industrial chimney. As the structure gains height, the effect of even a small geometric deviation can grow at the upper levels. Systematic measurements are therefore taken as the form climbs, and any necessary corrections are made in a controlled way.

A slipform system also requires an uninterrupted concrete supply programme. Concrete production, pumping or crane handling, reinforcement fixing and the shift pattern must all keep pace with the advance of the form.

On industrial chimney projects, Rayf Teknik can include steel ladders, maintenance platforms and other plant-related structural requirements in the project scope alongside the reinforced-concrete shell. Rayf Teknik's past references also include chimney platforms, ladders and associated structural steelwork for energy and industrial facilities.

A well-planned slipform operation ensures that tall reinforced-concrete industrial chimneys are built under full control. Bringing structural design, formwork engineering, concrete technology and site logistics together in a single work programme is one of the most important elements of the project.

TECHNICAL SPECIFICATIONS

Concrete chimney technical specifications

Each concrete chimney shell is sized specifically for the project according to diameter, height, thermal and corrosion loads. The values below are typical production ranges; site measurements and structural calculations determine the final values.

Specification Value
01 Chimney Type Reinforced-Concrete Chimney
02 Internal Diameter Range 1,200 mm – 6,000 mm
03 Height Range 20 m – 120 m
04 Concrete Class C40/50 – C60/75
05 Compressive Strength ≥ 50 MPa
06 Heat Resistance 250°C – 600°C
07 Reinforcing Steel B500C
08 Standards Compliant with TS EN standards
09 Corrosion Resistance High
10 Installation Project-specific, safe installation
Reinforced-Concrete Chimneys for Industrial Plants

TECHNICAL ADVANTAGES

Why a reinforced-concrete industrial chimney?

An industrial chimney is more than a shell: it carries the emission line and supports maintenance. The advantages are summarised node by node.

RAYF

01

High Strength

The industrial chimney is sized for wind, thermal and corrosion loads, so the shell remains durable for the long term.

Large-scale industrial facility working at night

CHIMNEY SUPPORT

Get expert support
from Rayf Teknik
for your industrial chimney projects.

Our site survey team will contact you about your concrete chimney, maintenance platform and ladder requirements.

Information & FAQ

Frequently asked questions about industrial chimneys

Concrete chimney diameter and height ranges, maintenance platforms and installation at operating plants.

Why are factory chimneys built so tall?

Industrial chimneys are built tall so that flue gases are released high above the surrounding buildings and terrain. At that height the gases disperse and dilute in the atmosphere before they reach ground level, which keeps ground-level pollutant concentrations within permitted limits. Height also creates natural draught that helps the hot gases rise.

The required height is calculated from the emission rate, gas temperature and velocity, the height of nearby buildings and local regulations, and is then combined with wind, seismic and thermal loads in the structural design of the chimney.

What diameters and heights are industrial chimneys built to?

For reinforced-concrete industrial chimneys, internal diameter and height are determined by the process gas, draught requirements and the structural model. Typical production ranges cover internal diameters of several metres and heights of several tens of metres; taller chimneys can also be built with dedicated calculations and a slipform programme. Wind, seismic action, temperature differentials and maintenance access all influence the cross-section. Final dimensions are not fixed until the site survey, emission line and structural calculations are complete. At handover, verticality, levels and platform access are recorded.

On taller chimneys, wind-induced vibration and maintenance platform loads increase the required cross-section. Internal diameter alone is not enough at the survey stage; existing neighbouring units and the gas duct are also assessed. Formwork fabrication is not committed until structural approval has been received.

Can a chimney be built at an operating plant?

Yes. The key at an operating plant is to open safe installation windows without stopping the production line unnecessarily. OHS, crane corridors, lifelines and the shift pattern are established together with the plant operator. Slipform or steelwork is sequenced so that it does not clash with the gas line or with maintenance shutdowns. Measurement platforms, ladders and embedded connections are installed as the shell rises, reducing the need for subsequent breaking-out and rework.

At an operating plant, a shift change never resets the work: completed guardrails and lifelines are handed over to the next crew. Hot work permits are renewed daily. If the programme conflicts with the control room's shutdown schedule, fabrication is put on hold.

How is a CEMS monitoring system integrated into a chimney?

Continuous emission monitoring points should be resolved within the same design as the chimney shell. If port levels, platform width, ladder access and electrical routing are added later, both tightness and occupational safety are compromised. Measurement balconies, lighting and cable routes are therefore built into the slipform or steel erection programme. At handover, the operator can see the sampling and maintenance levels in the report. In this way, regulation-compliant access becomes an integral part of the structure.

If a sampling port is cut afterwards, both tightness and sample quality suffer. Platform width is selected according to the load of instruments and personnel. Cabling is never embedded randomly in chimney joints; it runs down a dedicated cable route.

How are the lining and materials selected for a concrete chimney?

Lining and concrete class are determined by process temperature, gas composition and corrosion risk. On high-temperature lines thermal expansion is the priority, while with acidic gases chemical resistance comes to the fore. Internal coatings, joint details and levels requiring maintenance access are marked during the site survey. Material selection is not just about catalogue values; it goes hand in hand with the site pouring regime and setting control. The right lining has a direct effect on the chimney's service life and maintenance frequency.

Lining trials do not end with a laboratory label; setting and surface moisture are also monitored during site pours. The wrong coating can flake away within a few seasons. The handover notes record the maintenance levels and how coating renewal is to be carried out.
