Reinforced-Concrete Water Tanks

Reinforced-Concrete
Water Tanks

OUR PROCESS

Water tank construction process

01

Volume Survey

Storage volume and watertightness requirements are defined during the water tank site survey.

02

Quotation

Slipform or conventional casting is specified in the water tank package.

03

Calculation

Water pressure, roof loads and seismic actions are incorporated into the cross-section design.

04

Detailing

Joints, linings and stairs are drawn up.

05

Set-Up

Formwork and OHS measures are prepared on site.

06

Concreting

The water tank shell rises under controlled conditions.

07

Handover

Watertightness and elevation records are handed over.

IMPLEMENTATION

Our watertight-shell approach
to water tanks

01Silo Solutions

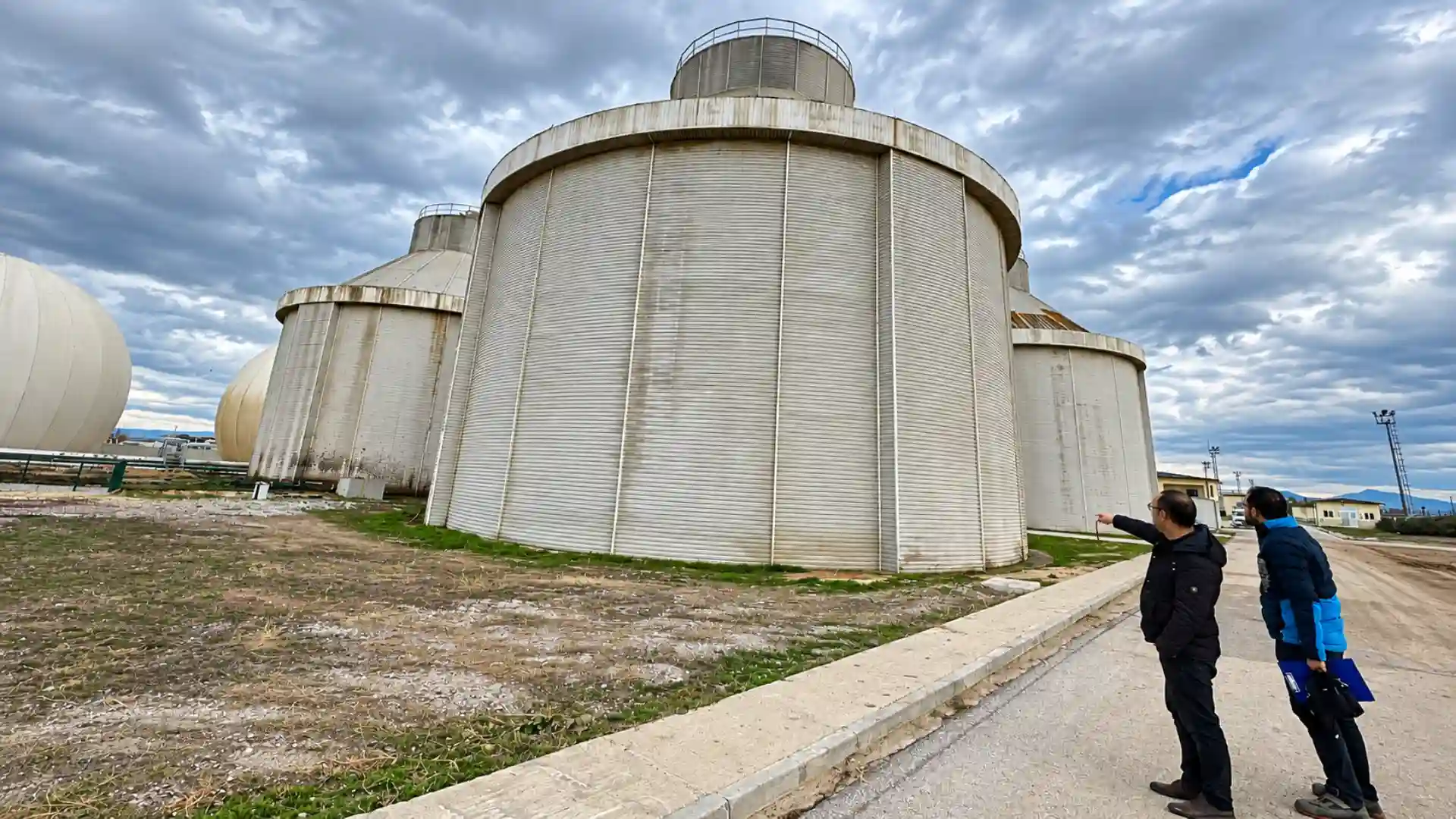

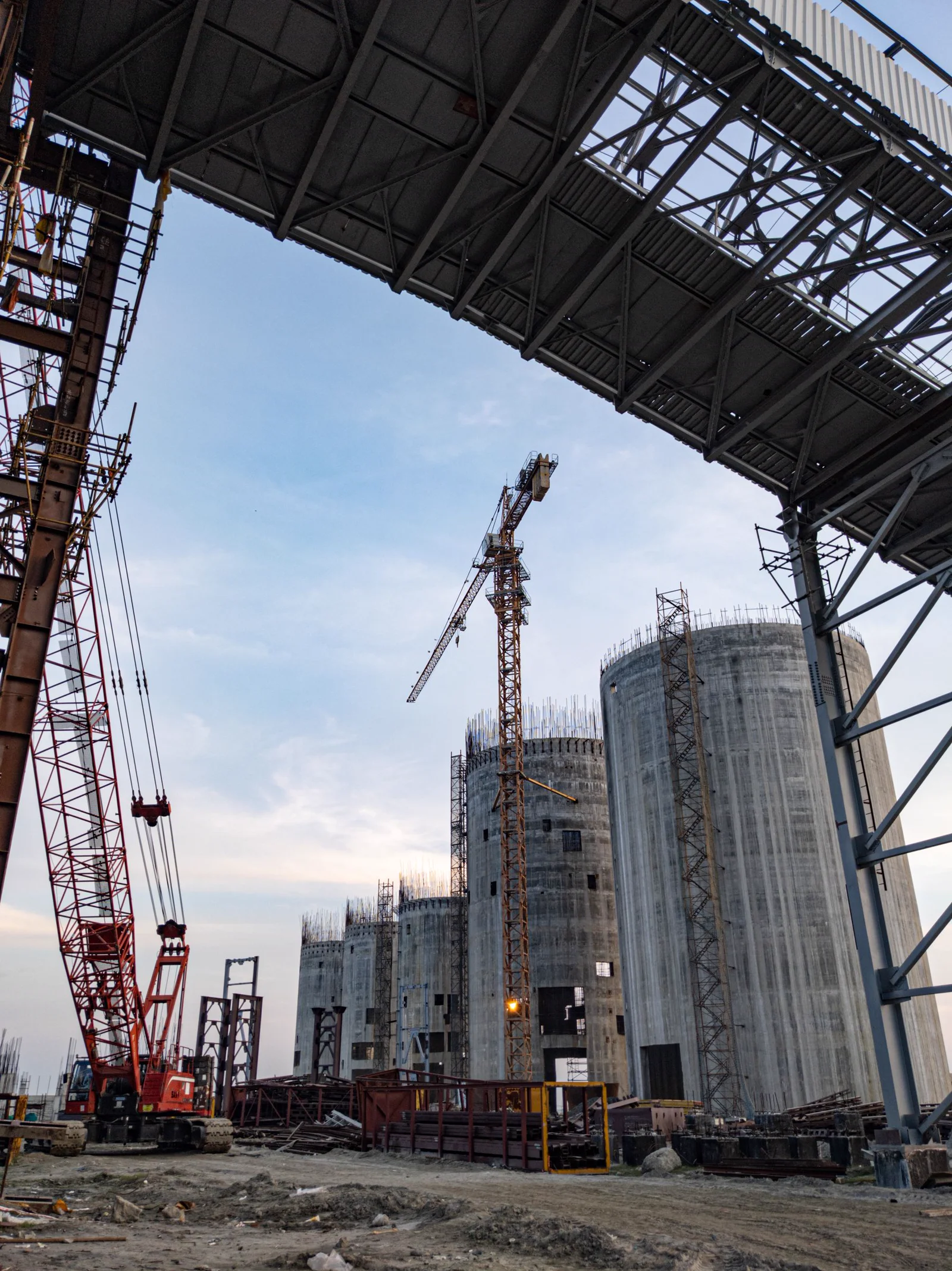

Reinforced-Concrete Water Tanks — Analysis

Analysis

Whether a tank holds drinking water or wastewater changes its lining and joint details. Volume is assessed during the site survey.

02Silo Solutions
Reinforced-Concrete Water Tanks — Engineering

Engineering

Slipform is chosen for tall tanks and conventional casting for low basins.

03Silo Solutions
Reinforced-Concrete Water Tanks — Water tank construction

Water tank construction

Watertightness is tested on site, and a report is issued at handover.

ABOUT THE SERVICE

Water tanks for watertight
reinforced-concrete storage

Reinforced-concrete water tanks are engineering structures used in a wide range of settings, from industrial plants to municipal infrastructure and from fire-water systems to process-water storage. In structures that hold water, watertightness, control of concrete cracking, connection details and long-term service conditions matter just as much as load-bearing capacity.

The intended use must be defined first when a tank is designed. Material and construction requirements can differ for structures storing drinking water, process water, fire water or other industrial liquids. The volume, geometry and water depth of the structure directly affect the hydrostatic pressure acting on the reinforced-concrete walls.

A slipform system can be considered for tall cylindrical reinforced-concrete water tanks or for certain load-bearing sections of water towers. On structures with continuous vertical geometry, the formwork rises together with the concrete placement, creating a steady and orderly construction process. On such projects, the slipform work plan should be prepared alongside the targets for concrete watertightness and surface quality.

Construction joints are especially important in water tanks. Depending on the design and the method used, joint locations should be determined in advance and the necessary details applied so that no weak points are created through which water could pass. In suitable geometries, the continuous concreting approach of slipforming can reduce the number of repeated formwork lifts along the reinforced-concrete wall.

Before construction begins, Rayf Teknik reviews pipe penetrations, valve connections, maintenance openings and equipment anchorages together with the reinforced-concrete design. Wherever possible, leaving connections in the correct position during concreting, rather than drilling the concrete afterwards, is important both for an orderly workflow and for watertightness.

On tall water-tank shells built with slipform, verticality and geometric dimensions are monitored continuously. Checking the surface at the level where the concrete emerges from the formwork, and intervening early when required, also helps maintain construction quality.

Once the tank is complete, not only its structural strength but also its fitness for service must be checked. Depending on project requirements, watertightness tests and the relevant surface treatments are carried out.

Drawing on its experience in tall reinforced-concrete structures and slipform systems, Rayf Teknik aims to deliver water tanks that suit the project geometry, site conditions and intended use. By coordinating the reinforced-concrete shell, connection details and the plant's piping systems in advance, water tanks become functional plant components not only structurally but also operationally.

TECHNICAL SPECIFICATIONS

Water tank technical specifications

Water tanks are sized according to diameter, height and watertightness class. Typical ranges are confirmed through the site survey and structural analysis.

Specification Value
01 Structure type Reinforced-concrete water tank
02 Method Slipform
03 Cold joints None
04 Watertightness Project-specific detailing
05 Installation Per site programme
Reinforced-Concrete Water Tanks

TECHNICAL ADVANTAGES

Why a reinforced-concrete water tank?

In a reinforced-concrete water tank, the watertight shell and the slipform method are engineered together.

RAYF

01

Continuous Concrete Placement

Continuous slipforming prevents cold joints and creates a monolithic, rigid structure.

Large-scale industrial facility working at night

TECHNICAL SUPPORT

Get expert support for your
water tank projects.

Our technical team will contact you to arrange a site survey and quotation for your water tank project.

Information & FAQ

Frequently asked questions about water tanks

Short answers on the scope, duration and handover of water tank projects.

What services does Rayf Teknik provide?

Rayf Teknik provides engineering, manufacturing and on-site installation services for slipform systems, reinforced concrete silos, industrial chimneys, structural steel and custom formwork systems.

Our work includes raw meal, cement, clinker, grain and lime silos; bridge and viaduct piers; wastewater treatment structures; minarets and domes; overhead and gantry cranes; and project-specific industrial applications.

We select the system, equipment and execution method according to each project's geometry, programme and site conditions. You can review completed work on our Projects page.

What is a slipform system and how does it work?

Slipform is a continuously moving formwork method used for tall reinforced-concrete structures such as silos, industrial chimneys, towers, and bridge or viaduct piers.

Hydraulic lifting equipment raises the formwork at a controlled rate while reinforcement work and concrete placement continue according to the construction programme. Continuous placement significantly reduces the risk of cold joints and creates a monolithic concrete structure.

Slipform is not limited to circular structures. Project-specific engineering allows it to be used for square, rectangular, polygonal, prismatic and other custom geometries.

What is the difference between slipform and climbing formwork?

Both systems are used for tall reinforced-concrete structures, but they progress differently.

Slipform rises continuously using hydraulic equipment, allowing concrete placement to proceed without interruption. This provides a major programme advantage for silos, chimneys, towers and similar structures.

Climbing formwork advances in stages. After each concrete lift reaches the required strength, the formwork is moved to the next level and reinstalled. The correct method depends on the structure's geometry, concrete design, programme and site requirements.

What are the advantages of a slipform system?

Slipform enables tall reinforced-concrete structures to be built quickly and under controlled conditions. Because the formwork rises without being dismantled and rebuilt at every level, it can provide a significant time advantage on large industrial projects.

Continuous concrete placement reduces cold-joint risk and helps create a monolithic structure. Other advantages include high production rates, less repetitive formwork labour, adaptability to different geometries and efficient work at height.

Where technically suitable, equipment can be modified for later projects. We can also provide supervision for clients who purchase a system and carry out the site application with their own team.

Where are slipform systems used?

Slipform can be used wherever height, repetitive geometry and continuous concrete walls are central to the design. Typical applications include:

  • Cement and clinker silos
  • Raw meal and raw-material silos
  • Grain, feed, lime and aggregate silos
  • Industrial chimneys
  • Bridge and viaduct piers
  • Control and communication towers
  • Wastewater treatment and digester structures
  • Dams, water-intake structures, mines and energy facilities

Systems can be engineered for cylindrical, square, rectangular, polygonal and other project-specific geometries.
