Silo Slipform
Systems

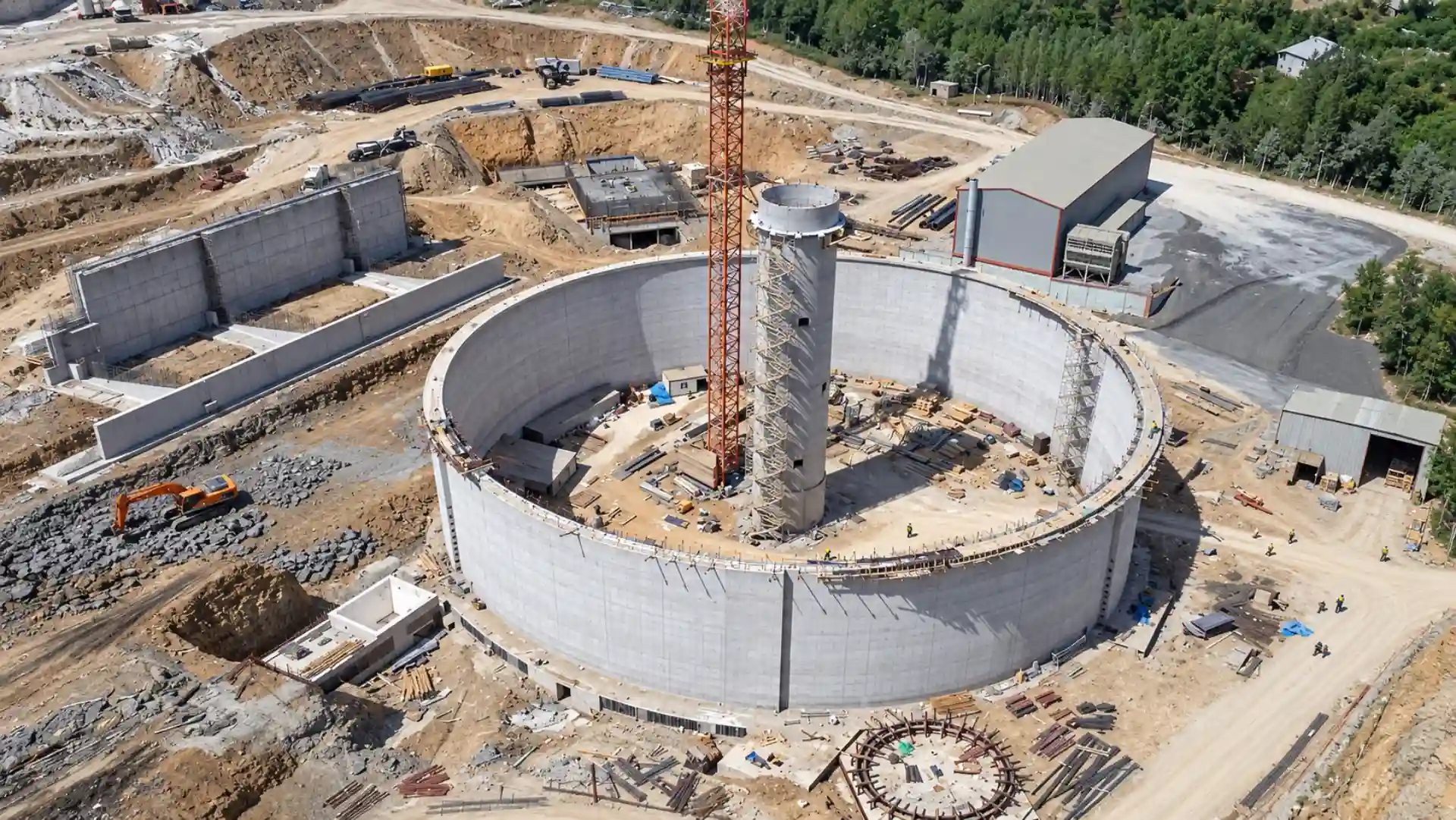

Silo slipforming is a specialised construction method for building tall reinforced-concrete structures that store cement, clinker, raw meal, grain, lime, minerals and other bulk materials quickly, under full control and as a single integrated structure. For silos that are tall, keep a largely constant cross-section and depend on the continuity of their reinforced-concrete walls, a slipform system offers a fundamentally different way of working from conventional formwork. It is far more than formwork equipment: it is a continuous construction process in which concrete production, reinforcement fixing, embedded items, working platforms, the hydraulic lifting system and site organisation are all managed together.

Rayf Teknik draws up the execution plan for each silo project around the structure's diameter, height and wall thickness, the material to be stored, the design geometry and site conditions. Once the formwork has been assembled at the starting level, concreting proceeds in a controlled sequence and hydraulic lifting units raise the form step by step. While the placed concrete gains sufficient strength, fresh concrete, reinforcement and any required embedded items are installed at the upper working level. This allows tall silo shells to rise steadily and without interruption.

Continuity of operations is one of the most critical factors in silo construction. Concrete setting time, ambient temperature, wind, concrete supply capacity and crew productivity must all be in step. For this reason, the entire process, from concrete supply to the shift pattern, is planned before slipforming begins. Ensuring that reinforcement fixing never falls behind the pour rate, continuously checking the form level and measuring the structure's verticality are fundamental parts of the operation.

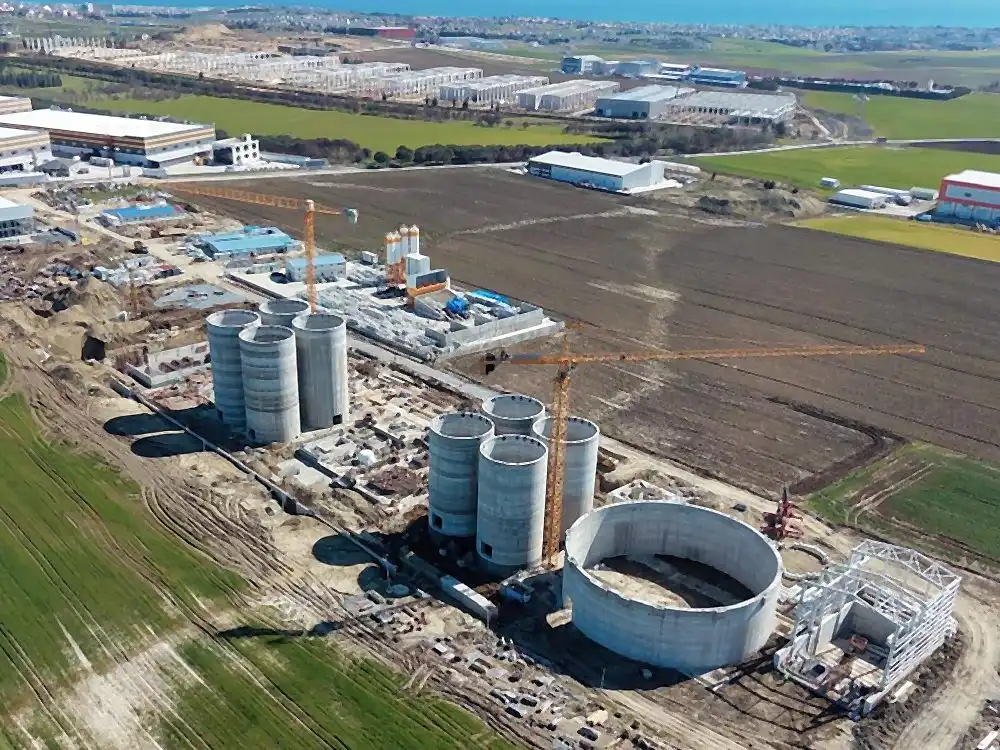

Slipform systems serve a wide range of sectors, from cement, raw meal and clinker silos at cement plants to grain storage facilities. Because every silo serves a different purpose, applying the same formwork configuration directly to every project would be a mistake. Any hoppers, openings, doors, gallery connections, equipment anchorages or process penetrations within the silo must be incorporated into the design before climbing begins.

Rayf Teknik's approach goes beyond raising the reinforced-concrete shell: the structure must also be made compatible with the processes that follow. The silo superstructure, structural steel connections, equipment openings and required anchorage points are all assessed alongside the construction programme.

A well-planned silo slipform operation delivers a steady production flow on tall reinforced-concrete storage structures. The key advantage of slipform technology is that it minimises interruptions along the reinforced-concrete shell and largely eliminates the repeated erection and stripping of conventional formwork. The result is a controlled construction process in which the site, concrete, reinforcement and formwork crews advance in coordination within a single production programme.
