Metro Tunnel Formwork

Metro Tunnel
Formwork

OUR PROCESS

Metro tunnel formwork process

01

Section Survey

Span, height, concrete thickness and working space are defined during the metro tunnel site survey.

02

Quotation

Panels, chassis, platforms and the travel system are included in the metro tunnel formwork package.

03

Calculation

Fresh concrete pressure, reinforcement density and niches are built into the design.

04

Fabrication

Formwork faces and the load-bearing chassis are fabricated to the project cross-section.

05

Installation

Internal and external supports and working platforms are erected on site.

06

Pour & Transfer

Once the concrete has gained strength, the formwork is released and moved to the next section on rails or wheels.

07

Handover

Cycle records and operating notes are handed over to the client.

IMPLEMENTATION

Our site approach to
metro tunnel formwork

01Slipform Systems
Metro Tunnel Formwork — Analysis

Analysis

Tunnel geometry may be rectangular, arched, oval or composite. The reinforced-concrete details are studied rather than standard dimensions assumed.

02Slipform Systems

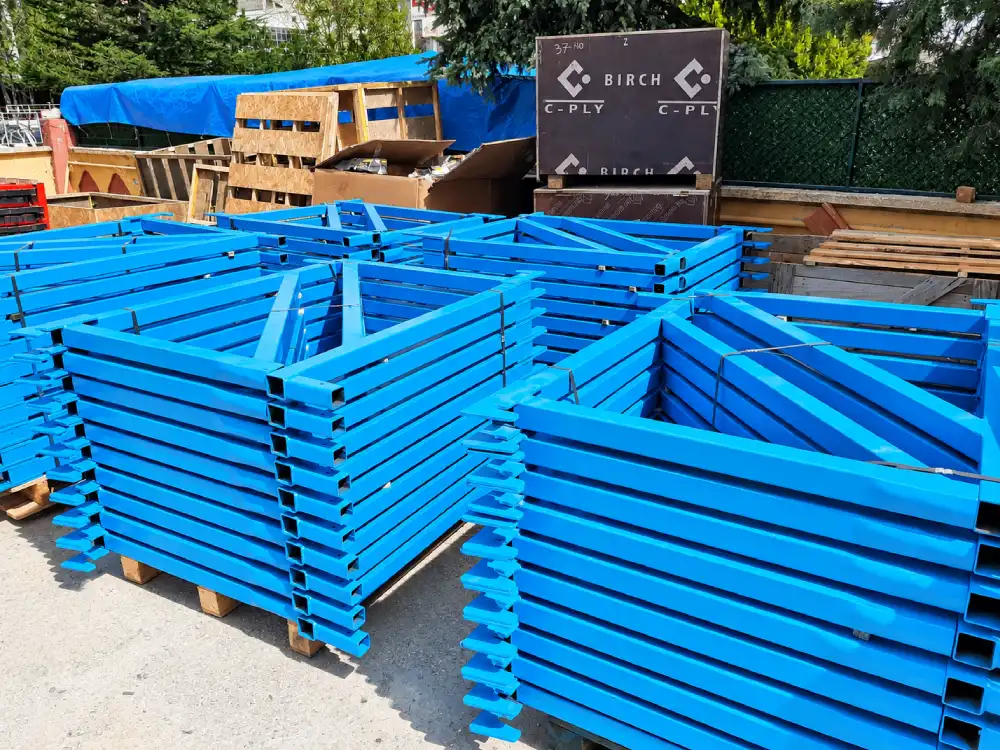

Metro Tunnel Formwork — Engineering

Engineering

Formwork faces, chassis, platforms and travel system are designed together, with reinforcement, niches and penetrations taken into account.

03Slipform Systems
Metro Tunnel Formwork — Metro tunnel formwork in practice

Metro tunnel formwork in practice

Concrete supply, reinforcement, installation and preparation for the next stage run in a single cycle. Site supervision can be provided for the first pour.

ABOUT THE SERVICE

Travelling and reusable
tunnel formwork

Metro tunnel formwork is a purpose-built formwork system used to form tunnel cross-sections accurately and repeatably in metro lines, station structures, cut-and-cover tunnels, underground passages and reinforced-concrete transport infrastructure. Rayf Teknik brings its site experience in slipform and special engineered formwork to metro tunnel projects, developing project-specific formwork solutions based on the tunnel's span, height, cross-sectional geometry, concrete thickness and available working space.

Not every metro or tunnel structure shares the same geometry. Reinforced-concrete tunnels may have rectangular, arched, oval or project-specific composite cross-sections. Metro tunnel formwork therefore needs to be designed around the project's reinforced-concrete details rather than built to standard dimensions. Formwork faces, the load-bearing chassis, working platforms, internal and external supports and the travel system are assessed together so that the system runs smoothly on site.

Travelling and Reusable Tunnel Formwork System

On long metro lines, identical or similar tunnel cross-sections may be repeated many times. On such projects, transferring the formwork to the next pour section on a travelling carrier system, rather than completely dismantling and re-erecting it after every pour, offers a major advantage. Once the concrete has gained the required strength, the formwork faces are released from the concrete and the system can be moved to the new working area on rails, wheels or a project-specific travel mechanism.

The approach to formwork movement, concreting programme and site organisation that Rayf Teknik applies in slipform provides an important engineering foundation for the development of metro tunnel formwork. Concrete supply, reinforcement works, formwork set-up, concreting and preparation for the next stage are all planned within a single work cycle.

Designing metro tunnel formwork involves far more than the tunnel's internal dimensions. Reinforcement density, fresh concrete pressure, working space, mechanical penetrations, niches, connection points and other reinforced-concrete details are all built into the system design. It is essential that the formwork faces hold their geometry under concrete pressure and can be reused with the same precision after every pour.

Where project conditions allow, systems manufactured by Rayf Teknik can be redeployed in later stages or on other projects. The existing load-bearing structure can be retained while panels, connections or support elements are revised to suit a new tunnel cross-section. In this way, the formwork investment made for the first project continues to deliver value on subsequent projects.

As with slipform systems, site supervision can be provided where required to companies that purchase metro tunnel formwork. Technical support during installation, the first pour, moving the formwork and establishing the work cycle ensures that the site team uses the system correctly and efficiently. Rayf Teknik's aim is to develop metro tunnel formwork solutions for metro and tunnel projects that are safe, durable, reusable and fully matched to the project geometry.

TECHNICAL SPECIFICATIONS

Metro tunnel formwork technical framework

Metro tunnel formwork is engineered according to tunnel cross-section, concrete thickness and site access. The rows below show a typical application framework.

Specification Value
01 System Metro tunnel formwork
02 Cross-section Rectangular, arched, oval, composite
03 Travel Rails, wheels or custom travel mechanism
04 Use Reusable and adaptable
05 Support Site supervision available
06 Applications Metro lines, stations, cut-and-cover tunnels
Metro Tunnel Formwork

TECHNICAL ADVANTAGES

Why metro tunnel formwork?

Metro tunnel formwork brings cross-section, travel and reuse together in one solution. The advantages are set out point by point below.

RAYF

01

Continuous Concrete Placement

Continuous slipforming prevents cold joints and creates a monolithic, rigid structure.

Large-scale industrial facility working at night

TECHNICAL SUPPORT

Get expert support for your
metro tunnel formwork projects.

Our technical team will contact you to arrange a site survey and quotation for your metro tunnel formwork.

Information & FAQ

Frequently asked questions about metro tunnel formwork

Short answers on the scope, duration and handover of metro tunnel formwork.

What services does Rayf Teknik provide?

Rayf Teknik provides engineering, manufacturing and on-site installation services for slipform systems, reinforced concrete silos, industrial chimneys, structural steel and custom formwork systems.

Our work includes raw meal, cement, clinker, grain and lime silos; bridge and viaduct piers; wastewater treatment structures; minarets and domes; overhead and gantry cranes; and project-specific industrial applications.

We select the system, equipment and execution method according to each project's geometry, programme and site conditions. You can review completed work on our Projects page.

What is a slipform system and how does it work?

Slipform is a continuously moving formwork method used for tall reinforced-concrete structures such as silos, industrial chimneys, towers, and bridge or viaduct piers.

Hydraulic lifting equipment raises the formwork at a controlled rate while reinforcement work and concrete placement continue according to the construction programme. Continuous placement significantly reduces the risk of cold joints and creates a monolithic concrete structure.

Slipform is not limited to circular structures. Project-specific engineering allows it to be used for square, rectangular, polygonal, prismatic and other custom geometries.

What is the difference between slipform and climbing formwork?

Both systems are used for tall reinforced-concrete structures, but they progress differently.

Slipform rises continuously using hydraulic equipment, allowing concrete placement to proceed without interruption. This provides a major programme advantage for silos, chimneys, towers and similar structures.

Climbing formwork advances in stages. After each concrete lift reaches the required strength, the formwork is moved to the next level and reinstalled. The correct method depends on the structure's geometry, concrete design, programme and site requirements.

What are the advantages of a slipform system?

Slipform enables tall reinforced-concrete structures to be built quickly and under controlled conditions. Because the formwork rises without being dismantled and rebuilt at every level, it can provide a significant time advantage on large industrial projects.

Continuous concrete placement reduces cold-joint risk and helps create a monolithic structure. Other advantages include high production rates, less repetitive formwork labour, adaptability to different geometries and efficient work at height.

Where technically suitable, equipment can be modified for later projects. We can also provide supervision for clients who purchase a system and carry out the site application with their own team.

Where are slipform systems used?

Slipform can be used wherever height, repetitive geometry and continuous concrete walls are central to the design. Typical applications include:

  • Cement and clinker silos
  • Raw meal and raw-material silos
  • Grain, feed, lime and aggregate silos
  • Industrial chimneys
  • Bridge and viaduct piers
  • Control and communication towers
  • Wastewater treatment and digester structures
  • Dams, water-intake structures, mines and energy facilities

Systems can be engineered for cylindrical, square, rectangular, polygonal and other project-specific geometries.
