OUR PROCESS

Minaret and dome construction process

01

Geometry

The minaret taper and dome form are measured during the site survey.

02

Quotation

Slipform or climbing formwork is specified in the minaret and dome package.

03

Calculation

Wind and vertical loads are incorporated into the minaret shaft design.

04

Formwork Detailing

The tapering section and dome formwork are drawn up.

05

OHS

Work-at-height measures and scaffolding or platforms are put in place.

06

Construction

The minaret rises on slipform, while the dome is cast on its own purpose-made form.

07

Handover

Verticality and geometry records are handed over.

IMPLEMENTATION

Our geometry-led approach to
minaret and dome works

01Engineering
Minaret & Dome Construction — Analysis

Analysis

The minaret shaft is matched to slipform and the dome to purpose-made formwork, with the geometry assessed during the site survey.

02Engineering
Minaret & Dome Construction — Engineering

Engineering

Taper, reinforcement and verticality are brought together in the minaret and dome design.

03Engineering
Minaret & Dome Construction — Minaret and dome construction

Minaret and dome construction

Safety at height takes priority, and a shaft report is issued at handover.

ABOUT THE SERVICE

Slipform discipline in
minaret and dome construction

Unlike standard industrial structures, minaret and dome construction requires structural engineering and architectural proportions to be considered together. In minarets it is the tall, slender reinforced-concrete shaft, and in domes the curved load-bearing geometry, that plays the key role in choosing the construction method. For both types of structure, dimensional accuracy, surface geometry and the subsequent architectural works all depend on the quality achieved at the reinforced-concrete stage.

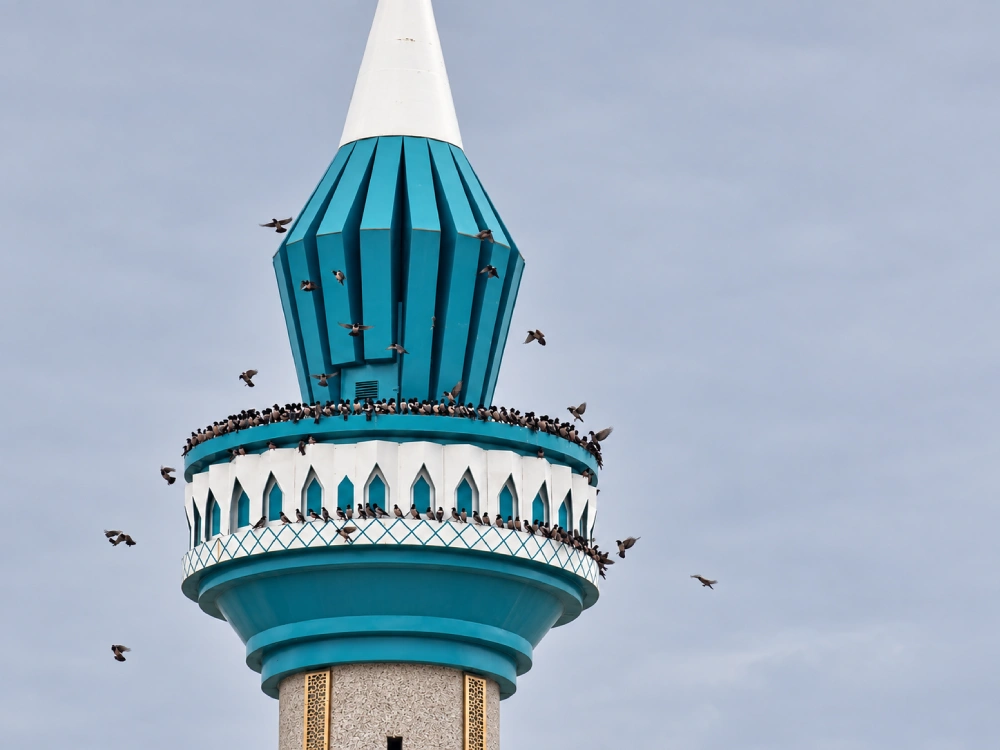

The cross-section of a minaret shaft rarely stays constant over its height. Shaft tapering, balcony zones and architectural transitions may call for special solutions at different stages of the formwork operation. As the height of the structure increases, wind and seismic actions also become more significant in the design of the structural system.

For certain sections of tall reinforced-concrete minaret shafts with suitable geometry, a slipform system can be considered. On long, continuous vertical sections in particular, raising the formwork in a controlled manner together with the concrete allows the works to progress steadily.

In a slipform solution delivered by Rayf Teknik, the minaret's changes in cross-section and its architectural transitions are assessed at the outset. The system should not be regarded as suitable only for straight, unchanging structures; with appropriate engineering adjustments, it can also be used on certain variable geometries. However, as every minaret has its own architectural form, feasibility must be assessed project by project.

Throughout the slipform operation, the centre line and verticality of the shaft are monitored at regular intervals. On slender structures such as minarets, even small geometric deviations are easy to see, so survey checks must be carried out with great precision.

Balcony connections, the staircase, internal floors, door openings and the connection points of other architectural elements must be coordinated with the reinforced-concrete programme. This ensures that the connections needed for later parts of the structure are prepared at the correct levels.

Dome construction calls for a different approach. The dome's diameter, rise ratio, shell geometry and supporting perimeter elements determine the formwork design of the reinforced-concrete system. The slipform approach used for the minaret cannot be applied directly to the dome; each structure requires a formwork and support solution developed for its own geometry.

Rayf Teknik's experience in tall reinforced-concrete structures, formwork and structural steel ensures that engineering and execution details are considered together on minaret and dome projects. The aim is to build the structural system in line with design values while preserving the architectural form, to carry out the reinforced-concrete works under full control, and to hand over a structure that is ready for the subsequent architectural works.

TECHNICAL SPECIFICATIONS

Minaret and dome technical specifications

The minaret shaft is engineered around verticality and its tapering geometry, while the dome is resolved through its formwork. Typical ranges are confirmed during the site survey.

Specification Value
01 Scope Minaret & Dome Construction
02 Category Engineering
03 Site Taksim Mosque — minaret and dome
04 Execution Project-specific
05 OHS Per site programme
06 Handover With survey records and documentation
Minaret & Dome Construction

TECHNICAL ADVANTAGES

Why slipform for minarets?

In minaret and dome work, geometry, verticality and OHS are managed within a single formwork approach.

RAYF

01

Continuous Concrete Placement

Continuous slipforming prevents cold joints and creates a monolithic, rigid structure.

Large-scale industrial facility working at night

TECHNICAL SUPPORT

Get expert support for your
minaret and dome projects.

Our technical team will contact you to arrange a site survey and quotation for your minaret and dome project.

Information & FAQ

Frequently asked questions about minaret and dome construction

Short answers on the scope, duration and handover of minaret and dome works.

What services does Rayf Teknik provide?

Rayf Teknik provides engineering, manufacturing and on-site installation services for slipform systems, reinforced concrete silos, industrial chimneys, structural steel and custom formwork systems.

Our work includes raw meal, cement, clinker, grain and lime silos; bridge and viaduct piers; wastewater treatment structures; minarets and domes; overhead and gantry cranes; and project-specific industrial applications.

We select the system, equipment and execution method according to each project's geometry, programme and site conditions. You can review completed work on our Projects page.

What is a slipform system and how does it work?

Slipform is a continuously moving formwork method used for tall reinforced-concrete structures such as silos, industrial chimneys, towers, and bridge or viaduct piers.

Hydraulic lifting equipment raises the formwork at a controlled rate while reinforcement work and concrete placement continue according to the construction programme. Continuous placement significantly reduces the risk of cold joints and creates a monolithic concrete structure.

Slipform is not limited to circular structures. Project-specific engineering allows it to be used for square, rectangular, polygonal, prismatic and other custom geometries.

What is the difference between slipform and climbing formwork?

Both systems are used for tall reinforced-concrete structures, but they progress differently.

Slipform rises continuously using hydraulic equipment, allowing concrete placement to proceed without interruption. This provides a major programme advantage for silos, chimneys, towers and similar structures.

Climbing formwork advances in stages. After each concrete lift reaches the required strength, the formwork is moved to the next level and reinstalled. The correct method depends on the structure's geometry, concrete design, programme and site requirements.

What are the advantages of a slipform system?

Slipform enables tall reinforced-concrete structures to be built quickly and under controlled conditions. Because the formwork rises without being dismantled and rebuilt at every level, it can provide a significant time advantage on large industrial projects.

Continuous concrete placement reduces cold-joint risk and helps create a monolithic structure. Other advantages include high production rates, less repetitive formwork labour, adaptability to different geometries and efficient work at height.

Where technically suitable, equipment can be modified for later projects. We can also provide supervision for clients who purchase a system and carry out the site application with their own team.

Where are slipform systems used?

Slipform can be used wherever height, repetitive geometry and continuous concrete walls are central to the design. Typical applications include:

  • Cement and clinker silos
  • Raw meal and raw-material silos
  • Grain, feed, lime and aggregate silos
  • Industrial chimneys
  • Bridge and viaduct piers
  • Control and communication towers
  • Wastewater treatment and digester structures
  • Dams, water-intake structures, mines and energy facilities

Systems can be engineered for cylindrical, square, rectangular, polygonal and other project-specific geometries.
