EXECUTION

Our site approach to
manhole formwork

01Construction Formwork
Manhole Formwork — Analysis

Analysis

The circular shaft is formed by inner and outer rings, and the chamber cross-section by panels and corner pieces. Dimensions come from the shaft design, not from a catalogue.

02Construction Formwork
Manhole Formwork — Engineering

Engineering

Stiffeners, tie rods and joints are designed for the fresh concrete pressure. If a joint slips, the wall thickness is lost.

03Construction Formwork
Manhole Formwork — Manhole formwork in practice

Manhole formwork in practice

Erection, pouring and striking run as a single cycle. Site supervision can be provided for the first pour.

ABOUT THE SERVICE

Steel manhole formwork
for inspection shafts

Manhole formwork is a steel formwork system that holds the reinforced-concrete structure of inspection shafts, sewer manholes and access chambers to the design dimensions. Inner and outer ring forms are used for circular shafts, while opposing panels and corner pieces are used for rectangular or special chambers. The formwork is manufactured in the workshop, erected on site, struck once the concrete has gained strength and re-erected on the next shaft.

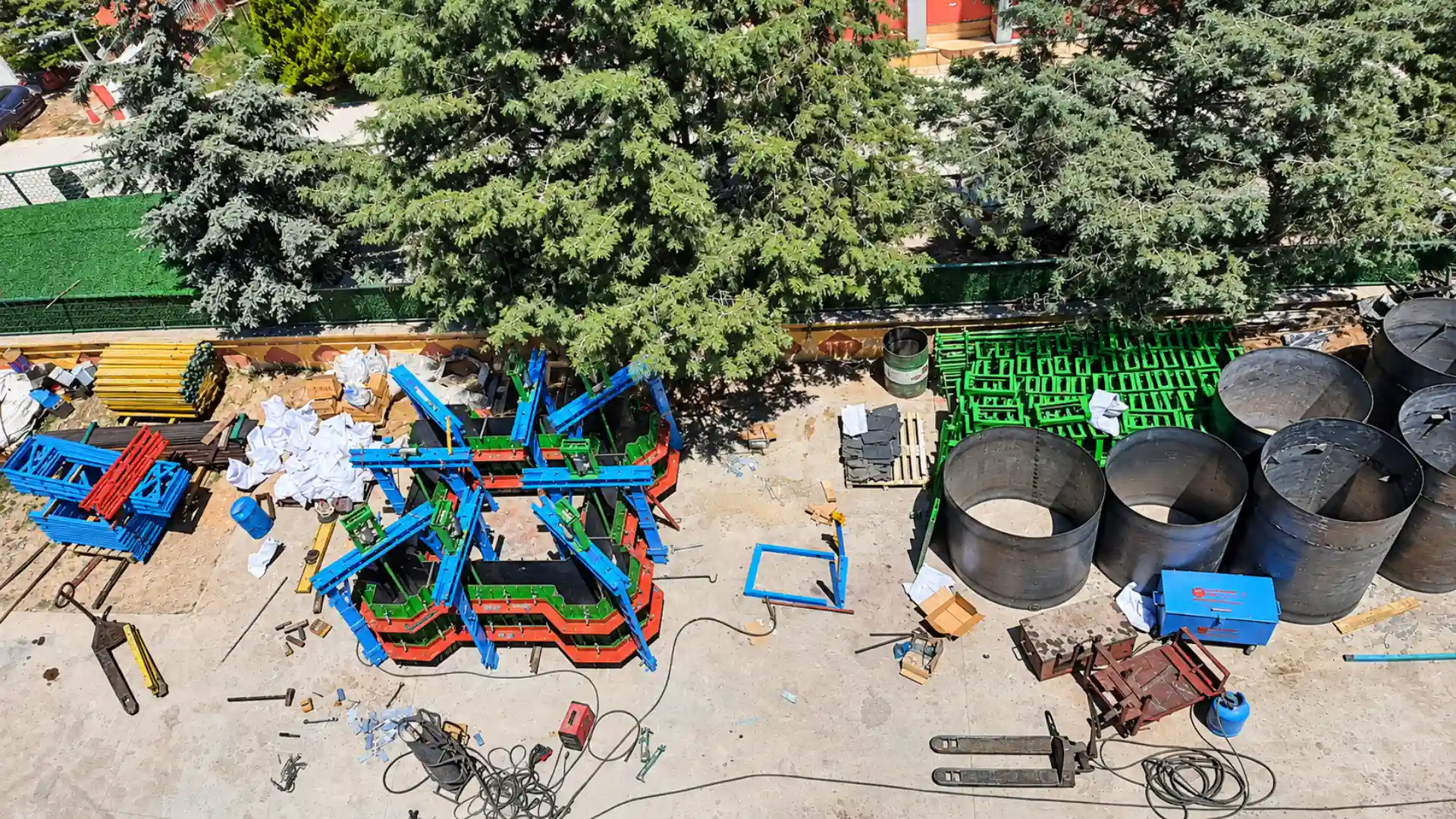

In the site photograph, the coloured steel frames form the chamber geometry, while the circular steel rings beside them form the shaft. The stacks of green panels are the flat components of the same system. Components are not tied to a single shaft: if the diameter and chamber size match, they are reused on the next manhole. If the dimensions change, only the rings or panels that no longer fit are renewed.

Inner Form, Outer Form and Shaft

In a circular manhole, the outer ring forms the outside face of the concrete and the inner form shapes the void. The gap between them is the wall thickness. In the chamber section, panels are connected face to face with tie rods or frames. Fresh concrete pressure is resisted by the stiffeners and joints. If a joint does not close fully, the shaft loses its roundness and the wall thickness drifts out of tolerance. For this reason, the bolt and tie-rod sequence is specified on the drawing and nothing is left out on site.

Cover seats, step-iron inserts, pipe penetrations and embedded plates are formed before the formwork is closed. Cutting the plate afterwards both extends the programme and reduces rigidity. Like culvert formwork, manholes are a repetitive element in infrastructure work; what changes is the diameter and the chamber size. The component logic is the same as for modular steel formwork: fabricate, erect, pour, strike and move on to the next shaft.

Rayf Teknik treats manhole formwork not as a fixed catalogue shaft, but as a fabrication developed around the internal diameter, wall thickness and chamber size of each project. Frames and rings painted in the workshop are checked against the hole sequence and the parts list before dispatch. On site, the initial erection is monitored together with the first pour.

During erection, the axis, plumb and wall thickness are set before any concrete arrives. Vibration must not loosen the joints, and the concrete consistency must not generate more pressure than the design allows for. The formwork is never struck before the concrete has gained enough strength to hold its own shape. Striking too early deforms the shaft; striking too late lets the steel bond to the concrete.

Whether the formwork is purchased or deployed on a site contract, site supervision can be provided for the initial erection and the first pour. At handover, the diameter, wall thickness, parts list and operating notes are documented. In this way, manhole formwork is not a one-off sheet-metal job but a production tool that is re-erected shaft after shaft.

TECHNICAL SPECIFICATIONS

Manhole formwork: technical overview

Manhole formwork is manufactured to suit the internal diameter, wall thickness and chamber size. The rows below show a typical application framework.

Specification Value
01 System Steel manhole formwork
02 Shaft Inner and outer ring forms
03 Chamber Panels, corner pieces and tie rods
04 Dimensions Internal diameter, wall thickness, chamber cross-section
05 Use Can be re-erected repeatedly
06 Support Fabrication, shipping and site supervision
