Culvert Formwork

Culvert
Formwork

OUR PROCESS

Culvert formwork process

01

Cross-Section Survey

The number of cells, width, height and run length are confirmed during the culvert site survey.

02

Quotation

Inner and outer forms, the carrier and the travel method are specified in the culvert formwork package.

03

Design Calculations

Fresh concrete pressure, rigidity and connection points are assessed.

04

Fabrication

Panels and chassis are manufactured to the project dimensions.

05

Erection

The inner-form carrier and the outer system are erected on site.

06

Pour & Transfer

Once the concrete has gained strength, the formwork is released and moved to the next cell on wheels or rails.

07

Handover

Operating notes and the pour-cycle log are handed over to the client.

EXECUTION

Our site approach to
culvert formwork

01Slipform Systems
Culvert Formwork — Analysis

Analysis

The site survey establishes whether the culvert is single- or multi-cell, its square or rectangular cross-section and the access available on site. The formwork is engineered to dimension rather than supplied as a fixed product.

02Slipform Systems
Culvert Formwork — Engineering

Engineering

The inner-form carrier, outer system and supports are designed together, with concrete pressure and the travel method built into the calculations.

03Slipform Systems
Culvert Formwork — Culvert formwork in practice

Culvert formwork in practice

Pouring, striking and moving to the next position run as a single cycle. Site supervision can be provided for the first pour.

ABOUT THE SERVICE

Culvert formwork engineered
for each project

Culvert formwork is a purpose-built system for constructing the reinforced-concrete culverts used on highway, railway, infrastructure, drainage and watercourse-crossing projects to accurate dimensions, in a consistent and repeatable way. Formwork can be produced for single-cell and multi-cell culverts, as well as for square, rectangular and other project-specific reinforced-concrete cross-sections. Drawing on its experience with slipform and special formwork systems, Rayf Teknik develops mobile, reusable solutions tailored to the dimensions of each project and the conditions on site.

On long culvert runs, the same reinforced-concrete cross-section may be repeated dozens of times. Rather than fully dismantling and re-erecting the formwork at every stage, moving it as a complete unit to the next pour position wherever possible is a major practical advantage. The travelling inner-form carrier, the outer formwork system and the supporting members can be designed together to suit the structure of the project.

Culvert Formwork Developed to Suit Each Project

The width, height, reinforced-concrete wall thicknesses and roof slab of a culvert vary from one project to the next. Rayf Teknik therefore treats the system not as a fixed, off-the-shelf product but as engineered formwork that is developed around the needs of each project. Fresh concrete pressure, the rigidity of the form faces, connection points and the method of moving the system are all assessed before work begins.

The site-organisation experience Rayf Teknik has built up through its slipform work is also applied to mobile culvert formwork. Culvert formwork does not operate on the same principle as a conventional vertical slipform system; however, moving formwork in a controlled manner and planning pour cycles systematically on repetitive reinforced-concrete work calls for a similar engineering discipline.

Once the pour is complete and the concrete has reached the required strength, the form faces are released from the concrete. The system can then be moved on to the next section on wheels, on rails or with a travel mechanism developed specifically for the project. On long culvert projects, the aim is to cut down the repeated cycle of dismantling, transporting and re-erecting the formwork.

A key feature of the culvert formwork system is that it is reusable. Panels, the load-bearing chassis and other suitable components from the first project can be redeployed on later projects. If the new culvert has different dimensions, the existing system can be extended, or selected components can be replaced to adapt it to the new cross-section. This approach carries the upgradable-equipment philosophy of our slipform systems over to culvert projects.

Beyond single-cell culverts, the system can also be developed for multi-cell reinforced-concrete culverts, utility galleries and project-specific crossing structures. Where the formwork is purchased, Rayf Teknik can provide site supervision as required, giving the site team technical support with erection, the first pour and moving the system to the next pour area.

Rayf Teknik's aim with its culvert formwork solutions is not simply to form a reinforced-concrete structure, but to deliver a durable formwork system that can be reused along long project alignments, adapted to different dimensions and used to bring greater order to work on site.

TECHNICAL SPECIFICATIONS

Culvert formwork: technical overview

Culvert formwork is designed around the number of cells, the cross-section dimensions and the length of the run. The rows below show a typical application framework.

Specification Value
01 System Culvert formwork
02 Cross-section Single-cell, multi-cell, square, rectangular
03 Movement Wheeled, rail-mounted or custom travel system
04 Use Reusable, adaptable to new dimensions
05 Support Site supervision available
06 Applications Highways, railways, drainage, watercourse crossings
Culvert Formwork

TECHNICAL ADVANTAGES

Why culvert formwork?

Culvert formwork brings repetitive cross-sections, movement and adaptation together in one solution. The advantages are set out point by point.

RAYF

01

Continuous Concrete Placement

Continuous slipforming prevents cold joints and creates a monolithic, rigid structure.

Large-scale industrial facility working at night

TECHNICAL SUPPORT

Get support for your
culvert formwork project.

Our technical team will contact you to arrange a site survey and quotation for your culvert formwork.

Information & FAQ

Culvert formwork FAQs

Short answers on the scope, timescales and handover of culvert formwork.

What services does Rayf Teknik provide?

Rayf Teknik provides engineering, manufacturing and on-site installation services for slipform systems, reinforced concrete silos, industrial chimneys, structural steel and custom formwork systems.

Our work includes raw meal, cement, clinker, grain and lime silos; bridge and viaduct piers; wastewater treatment structures; minarets and domes; overhead and gantry cranes; and project-specific industrial applications.

We select the system, equipment and execution method according to each project's geometry, programme and site conditions. You can review completed work on our Projects page.

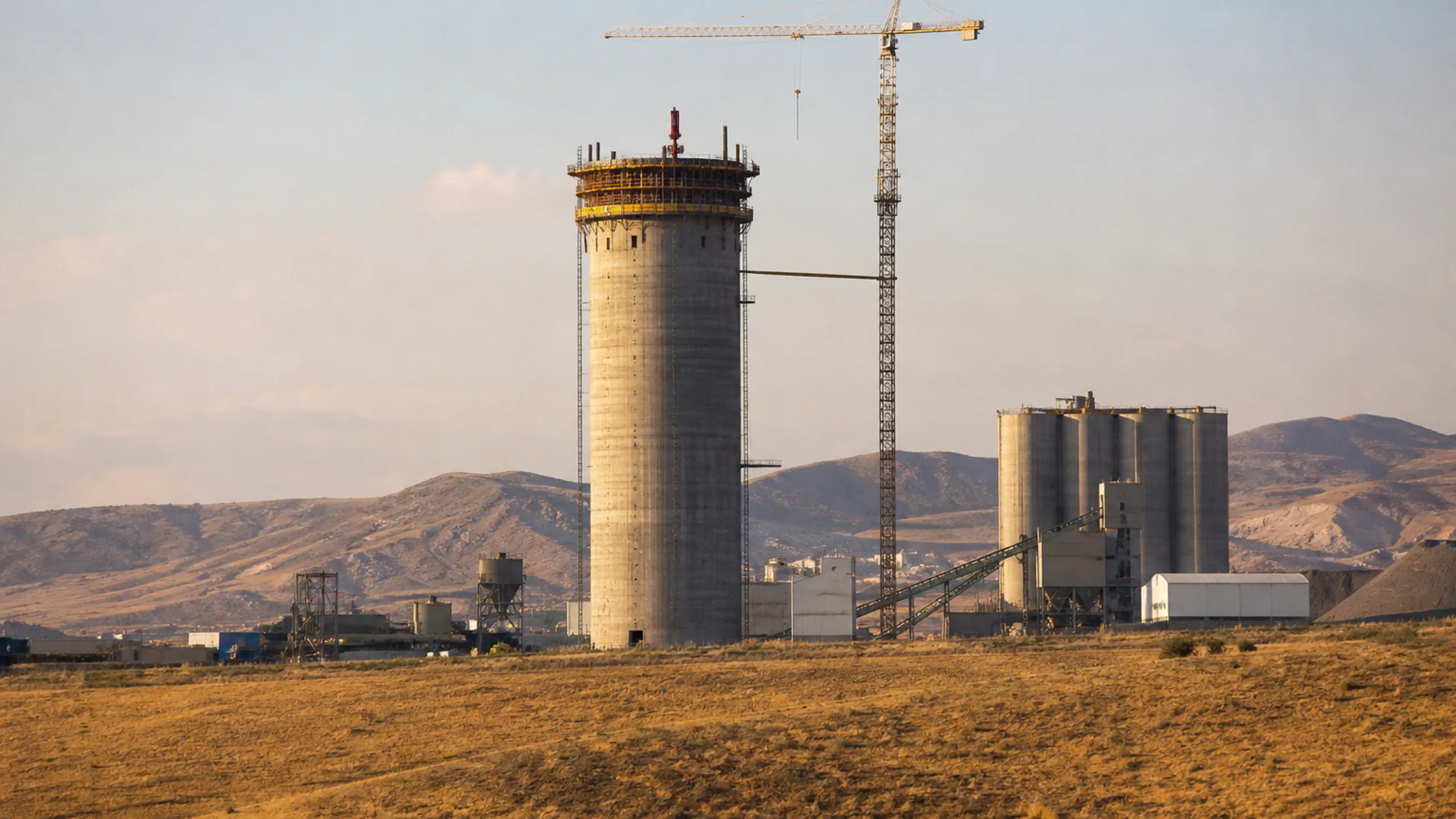

What is a slipform system and how does it work?

Slipform is a continuously moving formwork method used for tall reinforced-concrete structures such as silos, industrial chimneys, towers, and bridge or viaduct piers.

Hydraulic lifting equipment raises the formwork at a controlled rate while reinforcement work and concrete placement continue according to the construction programme. Continuous placement significantly reduces the risk of cold joints and creates a monolithic concrete structure.

Slipform is not limited to circular structures. Project-specific engineering allows it to be used for square, rectangular, polygonal, prismatic and other custom geometries.

What is the difference between slipform and climbing formwork?

Both systems are used for tall reinforced-concrete structures, but they progress differently.

Slipform rises continuously using hydraulic equipment, allowing concrete placement to proceed without interruption. This provides a major programme advantage for silos, chimneys, towers and similar structures.

Climbing formwork advances in stages. After each concrete lift reaches the required strength, the formwork is moved to the next level and reinstalled. The correct method depends on the structure's geometry, concrete design, programme and site requirements.

What are the advantages of a slipform system?

Slipform enables tall reinforced-concrete structures to be built quickly and under controlled conditions. Because the formwork rises without being dismantled and rebuilt at every level, it can provide a significant time advantage on large industrial projects.

Continuous concrete placement reduces cold-joint risk and helps create a monolithic structure. Other advantages include high production rates, less repetitive formwork labour, adaptability to different geometries and efficient work at height.

Where technically suitable, equipment can be modified for later projects. We can also provide supervision for clients who purchase a system and carry out the site application with their own team.

Where are slipform systems used?

Slipform can be used wherever height, repetitive geometry and continuous concrete walls are central to the design. Typical applications include:

  • Cement and clinker silos
  • Raw meal and raw-material silos
  • Grain, feed, lime and aggregate silos
  • Industrial chimneys
  • Bridge and viaduct piers
  • Control and communication towers
  • Wastewater treatment and digester structures
  • Dams, water-intake structures, mines and energy facilities

Systems can be engineered for cylindrical, square, rectangular, polygonal and other project-specific geometries.
