100 m
Height
For stronger structures
Industrial Chimney
Bozüyük Glass
Plant Chimney
Turnkey 100 m reinforced-concrete chimney for Park Cam's phase 2 glass plant in Bozüyük, Ø 9.70–5.80 m, with lining, insulation, steelwork and aviation lights.
Ø 9.70 m
Max. diameter
2015
Year
Bozüyük / Eskişehir
Project Location

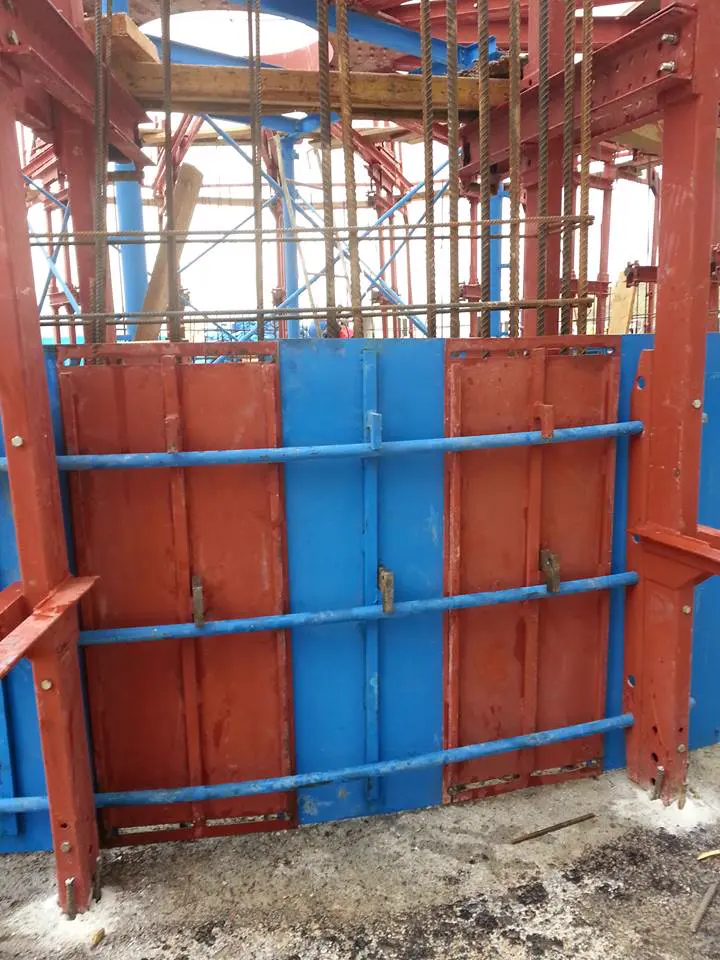

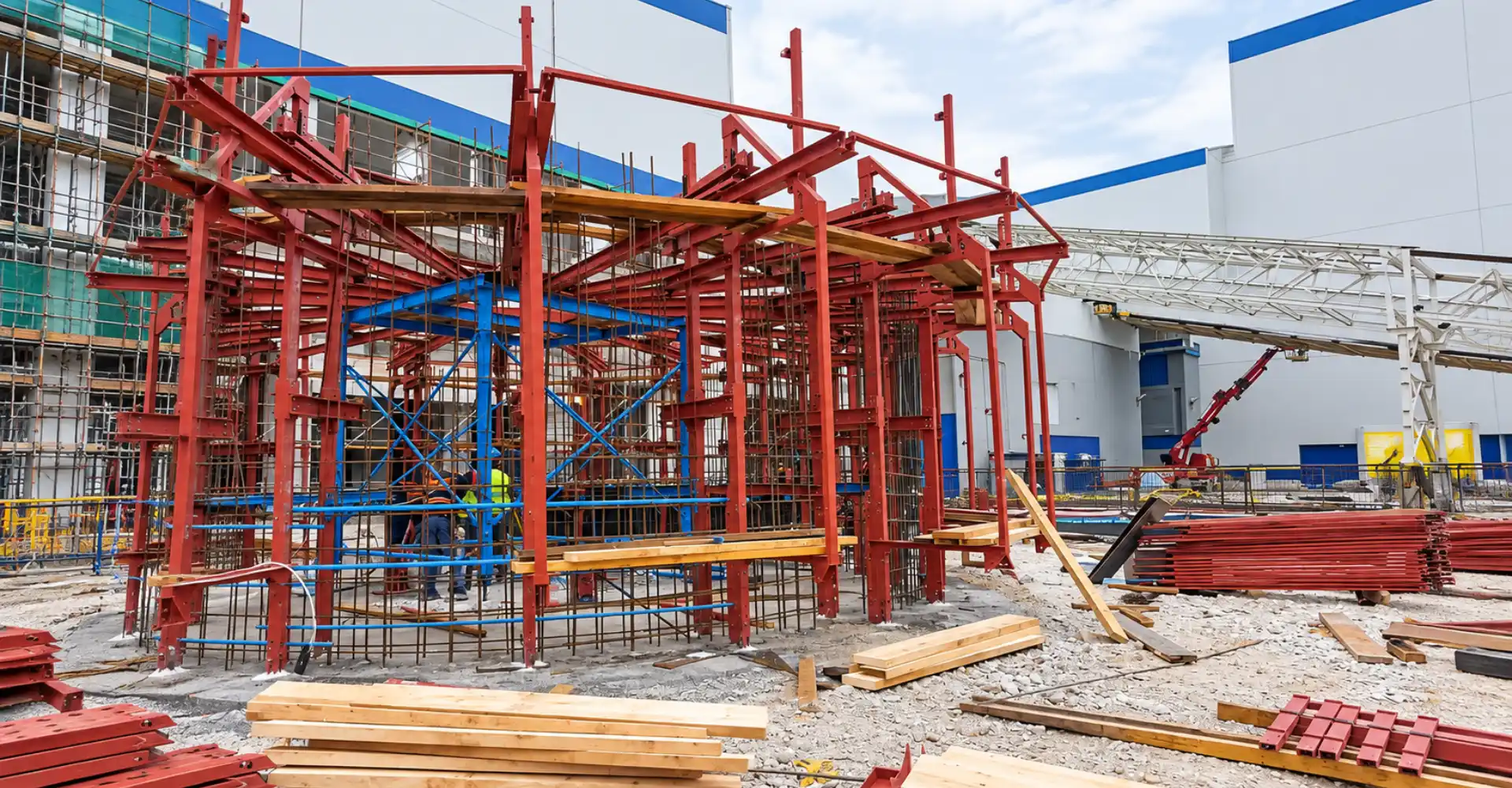

Site Gallery
Project Gallery
Project Summary
Project Details
Key data for the 2015 Bozüyük chimney. The shell diameter ranges from Ø 9.70 m to Ø 5.80 m.
#SpecificationValue
01
Client
Park Cam San. Tic. A.Ş.
02
Scope
Phase 2 reinforced-concrete chimney construction
03
Structure
Reinforced-concrete chimney
04
Facility
Glass plant
05
Diameter
Ø 9.70 m – Ø 5.80 m
06
Height
100 m
07
Site
Bozüyük / Eskişehir
08
Additional scope
Aviation warning lights, lightning protection, brick lining, insulation, steelwork, painting, cast-iron cap
From Our Portfolio
Related
Reference Projects
Selected CEMS, chimney, silo and steel projects delivered with the same engineering discipline.
Project Support
Planning a project
like Bozüyük Glass Plant Chimney?
Talk to our engineers.
From the initial site survey to final handover, our team supports your project at every stage. You can also reach us by email.
Questions & Answers
Frequently Asked Questions
Answers about our services, slipform technology, how it differs from climbing formwork and where it is used.
Does Rayf Teknik work in slipform, machinery and structural steel?
Yes. Rayf Teknik provides engineering, manufacturing and site services in all three areas.
What is a slipform system?
Slipform is a construction method for silos, chimneys and other tall reinforced-concrete structures. The formwork rises continuously as concrete is placed, which minimises the risk of cold joints.
What scope of work did this project cover?
Turnkey reinforced-concrete chimney. Full specifications for Bozüyük Glass Plant Chimney are listed in the Project Details section above.
