9 silos
Quantity
For safer storage
Silo
Silivri Boğaziçi
Çimento Silos

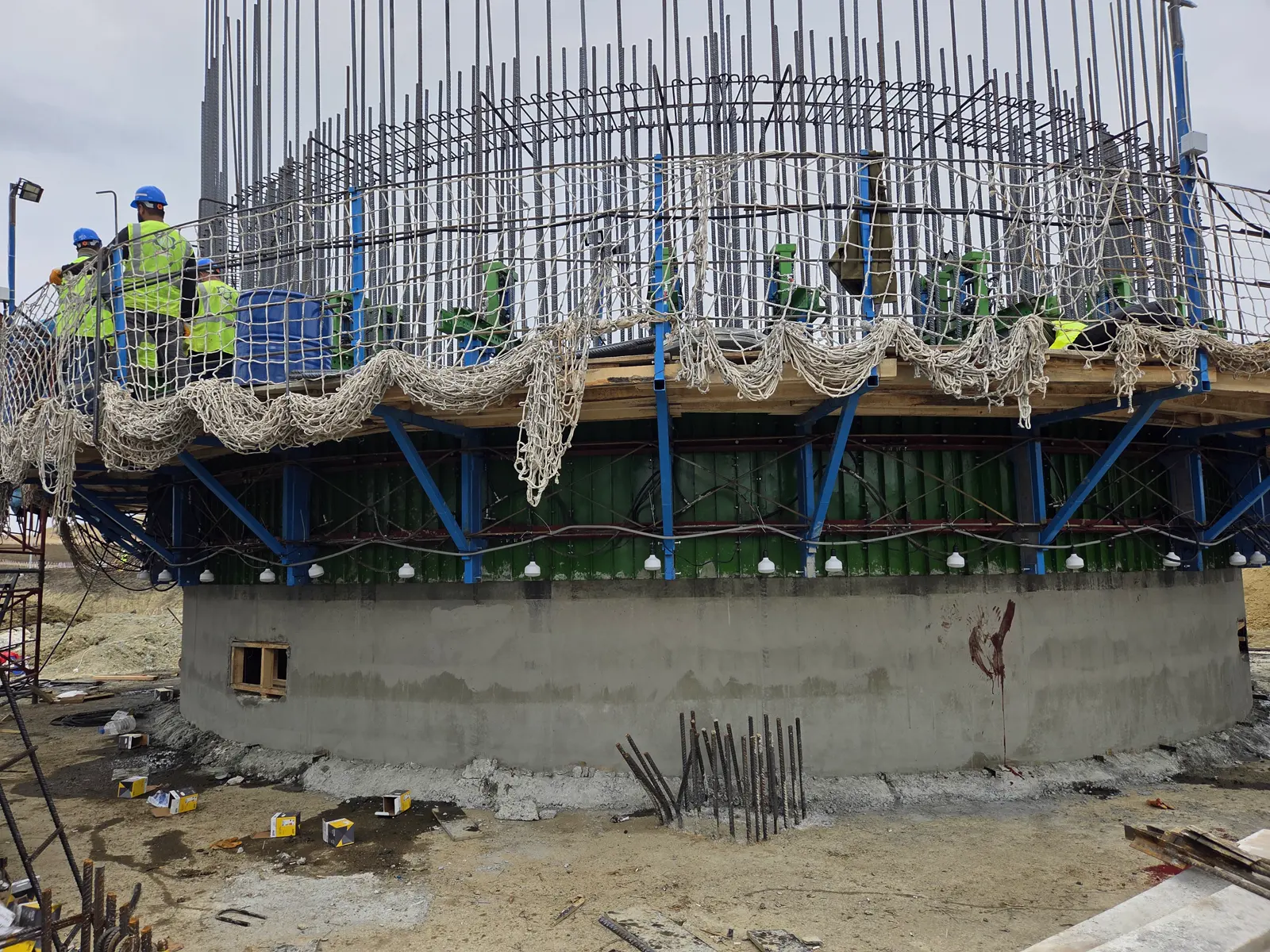

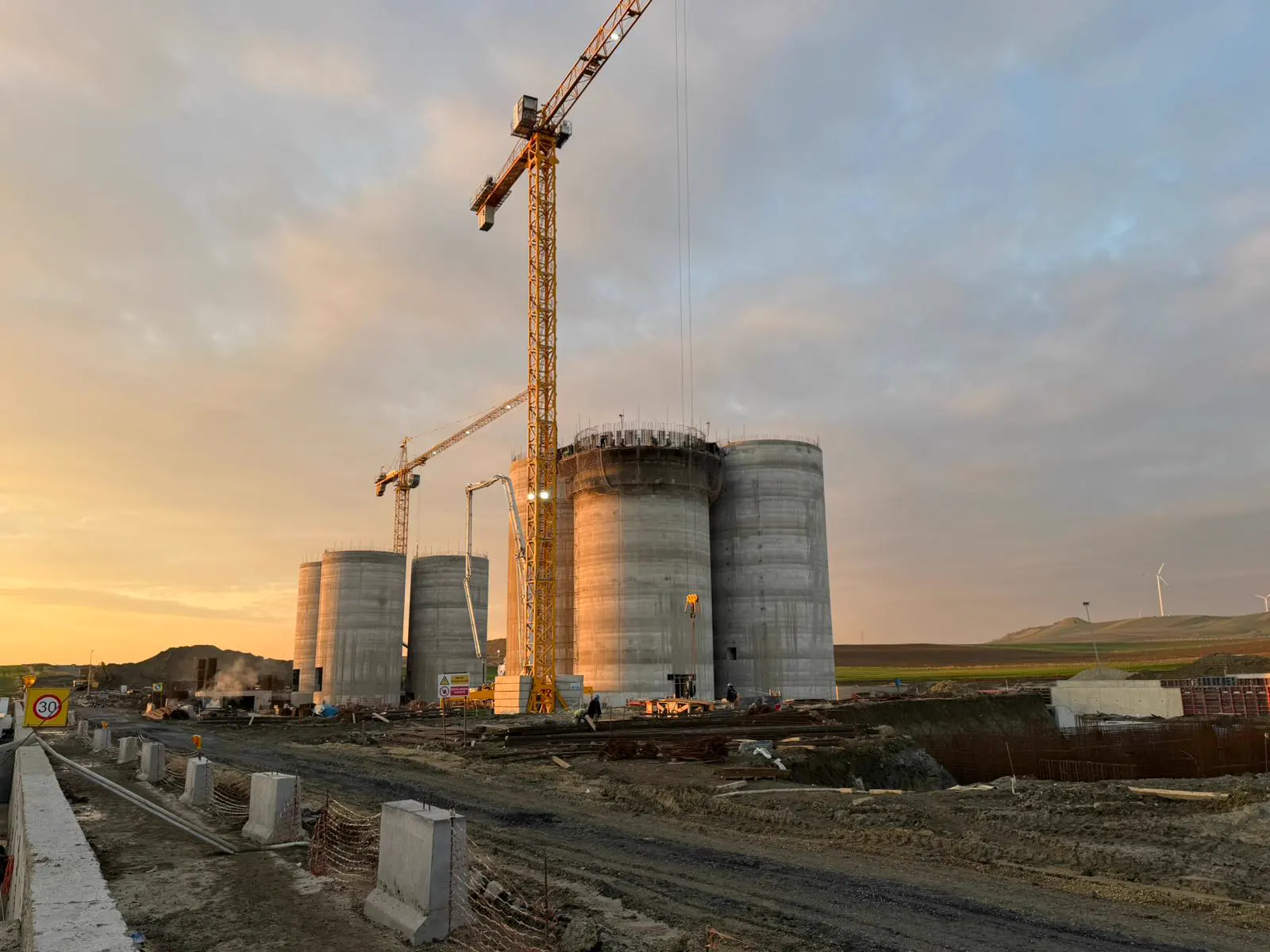

Nine reinforced-concrete silos at the Boğaziçi Çimento grinding plant in Silivri for Cengiz İnşaat: a Ø 37 m clinker silo plus additive and cement silos.
Ø 37 m
Clinker silo
26.50 m
Cement silos
Silivri / Istanbul
Project Location
Site Gallery
Project Gallery
Project Summary
Project Details
Nine reinforced-concrete silos at the Boğaziçi Çimento grinding plant site. Clinker, additive and cement silos are listed separately with their own dimensions.
#SpecificationValue
01
Client
Cengiz İnşaat San. ve Tic. A.Ş.
02
Site
Boğaziçi Çimento grinding plant project, Silivri
03
Structure
Reinforced-concrete silo
04
Quantity
9 silos in total
05
Clinker silo
1 no., Ø 37 m, 11.50 m high
06
Additive silos
4 no., Ø 13 m, 26.50 m high
07
Cement silos
4 no., Ø 13 m, 26.50 m high
08
Additional scope
Technical support, consultancy and embedded steel installation
From Our Portfolio
Related
Reference Projects
Selected CEMS, chimney, silo and steel projects delivered with the same engineering discipline.
Project Support
Planning a project
like Istanbul Silivri Boğaziçi Çimento Silos?
Talk to our engineers.
From the initial site survey to final handover, our team supports your project at every stage. You can also reach us by email.
Questions & Answers
Frequently Asked Questions
Answers about our services, slipform technology, how it differs from climbing formwork and where it is used.
Does Rayf Teknik work in slipform, machinery and structural steel?
Yes. Rayf Teknik provides engineering, manufacturing and site services in all three areas.
What is a slipform system?
Slipform is a construction method for silos, chimneys and other tall reinforced-concrete structures. The formwork rises continuously as concrete is placed, which minimises the risk of cold joints.
What scope of work did this project cover?
Slipform construction of nine reinforced-concrete silos. Full specifications for Istanbul Silivri Boğaziçi Çimento Silos are listed in the Project Details section above.
